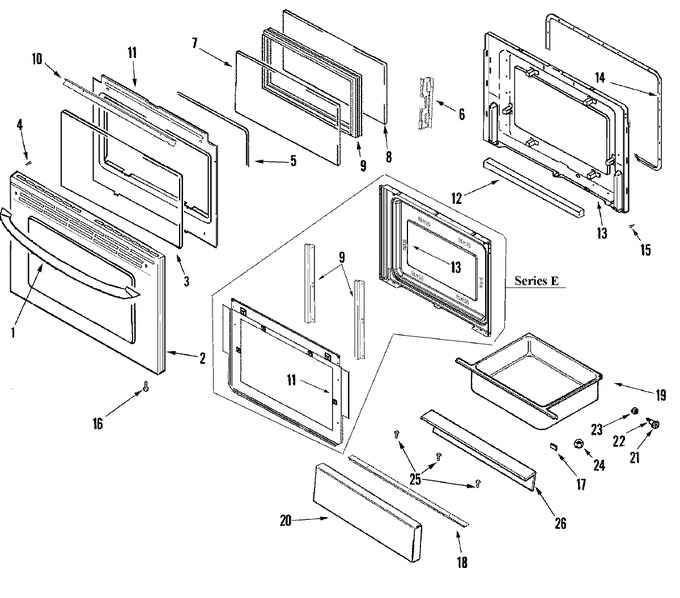

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/top Assembly
03 - Door/drawer (stl)
04 - Gas Controls
05 - Oven/base
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010241 | Handle, Door (blk) | A |
|
- | ||||
| 1 | W11190816 | Spacer, Handle (Replaces: 74008914) | A |
|
$ 14.94 | ||||
| 2 | 74010233 | Insulation, Foil | A |
|
- | ||||
| 2 | 74010259 | Panel, Door (stl) | A |
|
- | ||||
| 3 | 74010196 | Glass, Outer Door (stl-lwr) | A |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 5 | 74008916 | Gasket, Window | A |
|
$ 127.97 | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 6 | 74010041 | Retainer, Door Glass | A |
|
- | ||||
| 7 | 74010231 | Glass, Door (inner/coated) | A |
|
- | ||||
| 8 | 74003645 | Glass, Inner | A |
|
Immediately | $ 162.53 | |||
| 9 | 74003644 | Frame, Glass | A |
|
- | ||||
| 9 | 74011458 | Bracket, Inner Glass | E |
|
- | ||||
| 9 | W11233072 | Screw, 8 X 1/2 (Replaces: 74002979) | E |
|
Immediately | $ 12.62 | |||
| 10 | 74010040 | Shield, Door (stl) | A |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 11 | W11233072 | Screw, 8 X 1/2 (Replaces: 74002979) | E |
|
Immediately | $ 12.62 | |||
| 11 | 3601F373-51 | Baffle, Oven Door (Replaces: 74011457) | E |
|
$ 244.22 | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 11 | 74009502 | Baffle, Oven Door | A |
|
- | ||||
| 12 | 74003647 | Insulation, Oven Door | A |
|
- | ||||
| 13 | 74003642 | Lining, Door | A |
|
- | ||||
| 13 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | A |
|
Immediately | $ 9.91 | |||
| 13 | 74011456 | Lining, Door | E |
|
- | ||||
| 14 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | A |
|
Immediately | $ 77.61 | |||
| 15 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 17 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | A |
|
$ 9.48 | ||||
| 18 | 74009841 | Handle, Drawer (stl) | A |
|
- | ||||
| 19 | 74008337 | Drawer, Storage | A |
|
$ 171.37 | ||||
| 19 | W11233072 | Screw (Replaces: 74009538) | A |
|
Immediately | $ 12.62 | |||
| 20 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | A |
|
$ 6.77 | ||||
| 20 | 74009840 | Panel, Drawer Gas (stl) | A |
|
- | ||||
| 21 | WP74004078 | Roller, Drawer (Replaces: 74004078) | A |
|
Immediately | $ 10.70 | |||
| 22 | 74005231 | Shaft, Storage Drawer Roller | A |
|
$ 9.23 | ||||
| 23 | WP488130 | Nut (Replaces: 7103P082-60) | A |
|
$ 6.27 | ||||
| 24 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | A |
|
$ 4.00 | ||||
| 25 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | A |
|
$ 6.77 | ||||
| 26 | W11233072 | Screw (Replaces: 74009538) | A |
|
Immediately | $ 12.62 | |||
| 26 | 2404F030-51 | Lining, Drawer Panel | A |
|
- |
