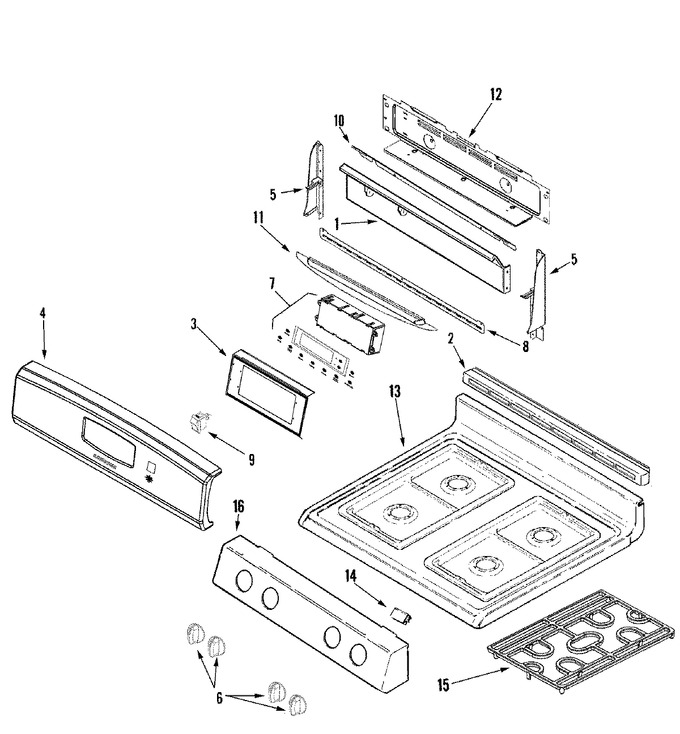

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009779 | Shield, Vent Deflector | A |
|
- | ||||
| 1 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | A |
|
Immediately | $ 12.62 | |||
| 2 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | A |
|
$ 11.92 | ||||
| 2 | 74009797 | Trim, Vent (blk) | A |
|
- | ||||
| 3 | 74008716 | Bracket, Clock | A |
|
- | ||||
| 3 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 4 | 74010277 | Panel, Backguard (stl-gas) | A |
|
- | ||||
| 5 | WP98008545 | Screw (blk) (Replaces: 74009537) | A |
|
$ 15.94 | ||||
| 5 | 74010202 | Support, Backguard (lt-blk) | A |
|
- | ||||
| 5 | 74010201 | Support, Backguard (rt-blk) | A |
|
- | ||||
| 5 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 6 | 74010270 | Knob, Valve (blk) | A |
|
- | ||||
| 7 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | A |
|
$ 6.47 | ||||
| 7 | 74010261 | Clock W/overlay (blk-gas) | A |
|
- | ||||
| 8 | 74009780 | Shield, Sight | A |
|
- | ||||
| 9 | 74008718 | Switch, Rocker (blk) | A |
|
$ 50.46 | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 | |||
| 10 | 74009708 | Shield, Wire | A |
|
- | ||||
| 11 | 74009800 | Shield, Vent (blk) | A |
|
- | ||||
| 11 | 74009801 | Screw, (8 X 1/4) (blk) | A |
|
- | ||||
| 12 | 74006536 | Cover, Wire (2 5/8`` X 2) | A |
|
- | ||||
| 12 | 74009943 | Cover, Rear Wire (upr) | A |
|
- | ||||
| 12 | WP7101P434-60 | Screw (Replaces: 71001394) | A |
|
$ 6.26 | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | A |
|
Immediately | $ 7.04 | |||
| 13 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | A |
|
$ 9.48 | ||||
| 13 | 71003047 | Top, Main (blk) | A |
|
- | ||||
| 14 | 74004827 | Clip, Top Locking | A |
|
- | ||||
| 15 | 74010273 | Grate (blk) | A |
|
- | ||||
| 15 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | A |
|
Immediately | $ 11.30 | |||
| 16 | 74010275 | Panel, Manifold (stl) | A |
|
- | ||||
| NI | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | A |
|
Immediately | $ 12.62 |
