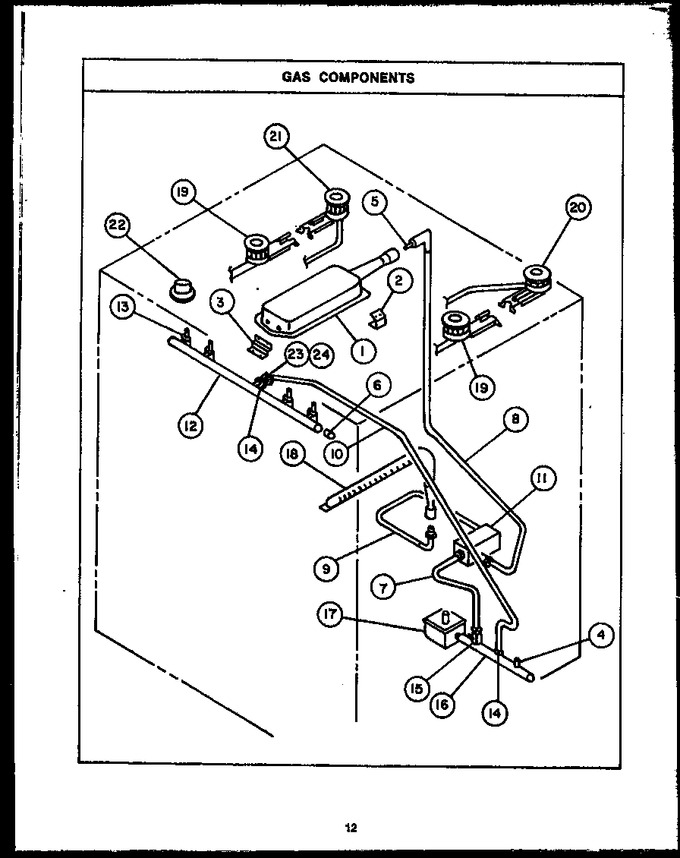

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063779		Sub 60691, Broil Burner Assy		Appelez-nous	-
2	0063785		Bracket, Ignitor		Appelez-nous	-
3	0062865		Bracket, Mtg., Br. Brnr.		Appelez-nous	-
4	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
5	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
5	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
6	Y0062747		Pipe Plug, 3/8``		Appelez-nous	-
7	Y0062742		Tubing, 3/8`` Od, 10 Ft.		Appelez-nous	-
8	0062434		Assy., Orifice And Tubing		Appelez-nous	-
9	0062433		Assy., Hood And Tubing		Appelez-nous	-
10	0062798		Tubing, Inlet To Manifold		Appelez-nous	-
11	Y0063143		Valve, Gas		Appelez-nous	-
12	0062751		Manifold Pipe		Appelez-nous	-
13	Y0063790		Valve, Top Burner		Appelez-nous	-
14	0062760		Fitting, Compression		Appelez-nous	-
15	Y0062749		Valve, Shut-off		Appelez-nous	-
16	0062762		Inlet		Appelez-nous	-
17	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
18	Y0063709		Oven Burner		Appelez-nous	-
19	Y0063147		Top Burner Front		Appelez-nous	-
20	Y0063146		Top Burner Rr		Appelez-nous	-
21	Y0063145		Top Burner Lr		Appelez-nous	-
22	Y0063180		Knob, Top Burner		Appelez-nous	-
22	Y0063177		Knob, Oven Heat Control		Appelez-nous	-
22	Y0063179		Knob, Selector Switch		Appelez-nous	-
23	Y0092580		3/8`` Compression Nut		Appelez-nous	-
24	Y0092579		3/8`` Compression Sleeve		Appelez-nous	-
