Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0069401 Support Channel, L.h. Appelez-nous -
2 Y0069402 Support Channel, R.h. Appelez-nous -
3 Y0069677 Brace, Upper Oven Appelez-nous -
4 0062423 Shield, Heat Appelez-nous -
5 0063166 Sub 61802 Trim, Lower, Splash Appelez-nous -
6 0071968 Glass, Splashplate Appelez-nous -
7 Y0091477 Trim Support Appelez-nous -
8 Y0091478 Trim Support Appelez-nous -
9 Y0071954 Trim, Glass Appelez-nous -
10 0071971 Rear Trim Appelez-nous -
11 0071064 Panel, Surface Light Appelez-nous -
12 Y0064184 Trim, Lower Appelez-nous -
13 0064177 Jacket Bottom Appelez-nous -
14 0064179 Shelf Appelez-nous -
15 Y0062790 Rear Cover Plate Appelez-nous -
16 Y0064183 Channel Rh Appelez-nous -
17 0064182 Channel Lh Appelez-nous -
18 W10124635 End Panel, Middle - R.h. Appelez-nous -
18 W10124637 End Panel, Middle - R.h. Appelez-nous -
18 W10124638 End Panel, Middle - R.h. Appelez-nous -
18 W10124639 End Panel, Middle - R.h. Appelez-nous -
18 W10124636 End Panel, Middle - R.h. Appelez-nous -
19 W10124630 End Panel, Middle - L.h. Appelez-nous -
19 W10124631 End Panel, Middle - L.h. Appelez-nous -
19 W10124632 End Panel, Middle - L.h. Appelez-nous -
19 W10124633 End Panel, Middle - L.h. Appelez-nous -
19 W10124634 End Panel, Middle - L.h. Appelez-nous -
20 0064175 Gusset, Module Appelez-nous -
21 0071972 Trim Strip, R.h. Side Appelez-nous -
22 Y0071973 Trim Strip, L.h. Side Appelez-nous -
23 W10124851 Jacket End Appelez-nous -
23 W10124848 Jacket End Appelez-nous -
23 W10124849 Jacket End Appelez-nous -
23 W10124852 Jacket End Appelez-nous -
23 W10124850 Jacket End Harvest Appelez-nous -
24 0064186 Vent, Extrusion Appelez-nous -
25 Y0042754 Blade, Fan Appelez-nous -
26 0062140 Bracket, Motor Mount Appelez-nous -
27 W10125651 Cover, Fan Appelez-nous -
28 Y0042226 Fan Motor Appelez-nous -
29 Y0062143 Mtg. Bracket, Fan Appelez-nous -
30 0063933 Cover, Vent Appelez-nous -
31 W10125650 Cover, Microwave Module Appelez-nous -
32 Y0073060 Receptacle Cover Appelez-nous -
33 0064185 Trim Frame, Outer Appelez-nous -
34 Y0064181 Jacket Top Appelez-nous -
35 W10126547 Backplate Assembly - Upper Appelez-nous -
36 0062138 Spacer, Wall Appelez-nous -
37 0062139 Spacer, Wall Appelez-nous -
38 0086412 Metal Rack W/spacers Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

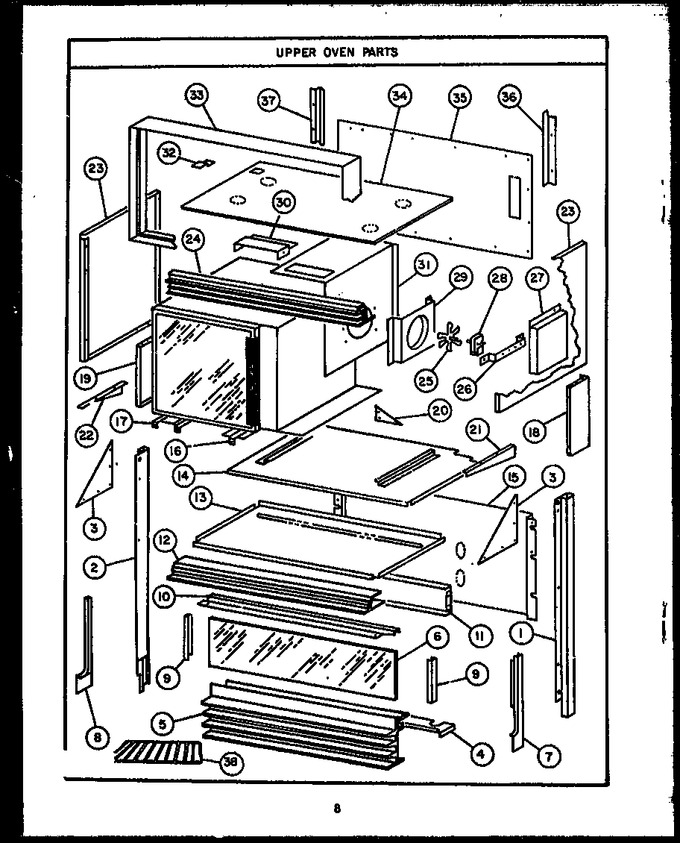

Diagram for RKD395
