SELECT A DIAGRAM

01 - Gas Components


02 - Lower Oven Cabinet Assy


03 - Lower Oven Electrical Components


04 - Microwave Oven Components

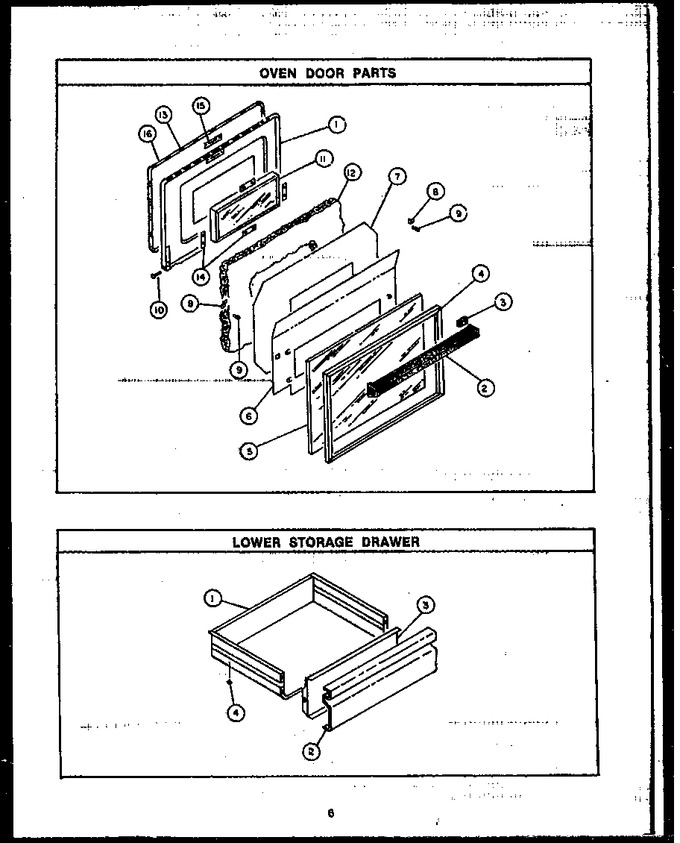

05 - Oven Door Parts


06 - Main Top/lower Oven Assy


07 - Upper Control Panel Parts


08 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0063517		Sub 63517y, Door Backer		Appelez-nous	-
1	0062814		Sub 60677 Storage Drawer		Appelez-nous	-
2	063702W		Panel, Drawer Wht		Appelez-nous	-
2	Y063702H		Panel, Drawer Hvst.		Appelez-nous	-
2	Y063702C		Panel, Drawer Cof.		Appelez-nous	-
2	063702A		Panel, Drawer Avo.		Appelez-nous	-
2	0068150		Handle, Door		Appelez-nous	-
2	063702L		Panel, Drawer L		Appelez-nous	-
3	Y0079978		Spacer Door Handle		Appelez-nous	-
3	0062784		Sub 61930cg, Liner Drawer		Appelez-nous	-
4	0063804		Frame, Door, Black		Appelez-nous	-
4	0092582		Plastic Glider		Appelez-nous	-
5	Y0063650		Panel, Black Glass		Appelez-nous	-
6	0062787		Air Baffle W/window		Appelez-nous	-
7	Y0063656		Plate, Insulation		Appelez-nous	-
8	Y0062439		Support Bracket, Glass		Appelez-nous	-
9	0042014		Cork Bumper		Appelez-nous	-
10	0091632		Rivet		Appelez-nous	-
11	0041491		Window Assy		Appelez-nous	-
12	0062614		Insulation,door-sub Backer		Appelez-nous	-
13	0068429		Clip, Tinnerman		Appelez-nous	-
14	Y0040992		Sub 52629, Retainer, Glass		Appelez-nous	-
15	Y0052039		Latch Plate		Appelez-nous	-
16	0071637		Dr. Gasket		Appelez-nous	-
