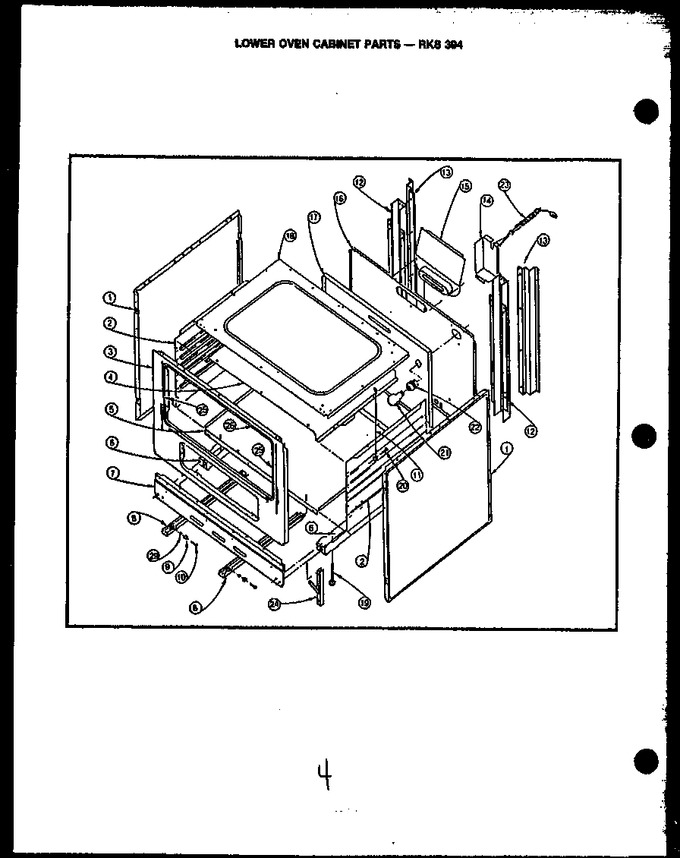

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y088652W | Sub 311003w, Panel-side, White |
|
- | |||||
| 1 | 88652H | Body Side Harvest |
|
- | |||||
| 1 | 088652L | Sub 311003n, Side Panel |
|
- | |||||
| 2 | Y00000000 | See Note Oven Side Liners Continuous Cleaning -- (not Field Repl.) |
|
- | |||||
| 3 | Y00000000 | See Note Front Frame -- (not Field Repl.) |
|
- | |||||
| 4 | Y00000000 | See Note Oven Top Liner-cont. Clean -- (not Field Repl.) |
|
- | |||||
| 5 | Y00000000 | See Note Bottom Baffle -- (not Field Repl.) |
|
- | |||||
| 6 | 0088654 | Rail, Base |
|
- | |||||
| 7 | 0052744 | Toe Panel (j) |
|
- | |||||
| 8 | Y0086912 | Track, Lower |
|
- | |||||
| 9 | Y0086920 | Roller, Front Lower |
|
- | |||||
| 10 | Y0086919 | Pin, Front Lower |
|
- | |||||
| 11 | Y00000000 | See Note Support Rod |
|
- | |||||
| 12 | Y0056141 | Support, Vertical |
|
- | |||||
| 13 | 61701 | Rear Support |
|
- | |||||
| 14 | 61678 | Wire Cover |
|
- | |||||
| 15 | 0088718 | Flue Box |
|
- | |||||
| 16 | 88656 | Main Back |
|
- | |||||
| 17 | Y00000000 | See Note Oven Back Liner Continuous Cleaning -- (not Field Repl.) |
|
- | |||||
| 18 | Y0086953 | Box, Burner |
|
- | |||||
| 19 | Y0088651 | Sub 62362, Leg, Leveling |
|
- | |||||
| 20 | Y00000000 | See Note Support Rod Screw |
|
- | |||||
| 21 | 8009 | Sub 42175, Lamp Oven (Replaces: Y0088673) |
|
Immediately | $ 16.80 | ||||
| 22 | Y0088674 | Socket, Oven Light |
|
- | |||||
| 23 | 0088909 | Cord Set (j) |
|
- | |||||
| 24 | Y0086790 | Hinge, Oven Door |
|
- | |||||
| 25 | Y0088626 | Sub 56090, Seal Door Side |
|
- | |||||
| 26 | Y0088848 | Sub 56091, Top Seal, Door |
|
- | |||||
| 29 | 0086922 | Ring, Lower Track |
|
- | |||||
| NI | 56143 | Stud, Main Top Locator |
|
- | |||||
| NI | Y0087016 | Pin, Connector |
|
- | |||||
| NI | Y0088571 | Snap-in Tee Nut |
|
- |
