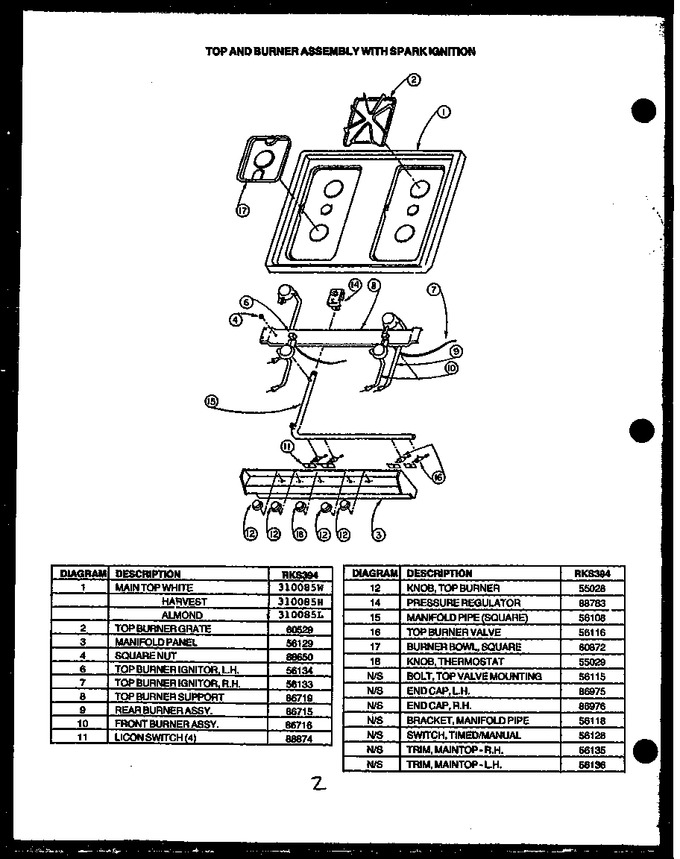

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310085H | Main Top, Harvest |
|
- | |||||
| 1 | 310085L | Cooktop, Almond |
|
- | |||||
| 1 | 310085W | Cooktop, White |
|
- | |||||
| 2 | 60529 | Top Burner Grate |
|
- | |||||
| 3 | 0056129 | Manifold Pnl |
|
- | |||||
| 4 | 0088650 | Square Nut {j} |
|
- | |||||
| 6 | Y0056134 | Electrode, Top Burner Lt |
|
- | |||||
| 7 | 56133 | Motor Pulley Assembly |
|
- | |||||
| 8 | Y0086719 | Support, Top Burner, 30`` {j} |
|
- | |||||
| 9 | Y0086715 | Burner - Top Rear (cal) |
|
- | |||||
| 10 | Y0086716 | Burner - Top Front (cal) |
|
- | |||||
| 11 | WP4157180 | Switch, Spark Valve (Replaces: Y0088874) |
|
$ 102.56 | |||||
| 12 | Y0055028 | Knob, Top Burner |
|
- | |||||
| 14 | Y0088783 | Pressure Regulator |
|
- | |||||
| 15 | 0056108 | Manifold Square Pipe (code Az) |
|
- | |||||
| 16 | Y0056116 | Gas Valve (for Sq. Code Az) |
|
- | |||||
| 17 | WPY0060872 | Burner Bowl (Replaces: 60872) |
|
$ 25.26 | |||||
| 18 | Y0055029 | Knob, Thermostat |
|
- | |||||
| NI | Y56115 | Assy,thermostat Kit |
|
- | |||||
| NI | M2-21131 | Bracket,elbow-vent (Replaces: 56136) |
|
$ 181.25 | |||||
| NI | 0086975 | End Cap, Lh |
|
- | |||||
| NI | 0086976 | End Cap, Rh |
|
- | |||||
| NI | 56128 | Pad, Bumper (Replaces: Y56128) |
|
$ 6.95 | |||||
| NI | 56118 | Assy, Exhaust Duct |
|
- | |||||
| NI | Y0056135 | Trim, Main Top |
|
- |
