SELECT A DIAGRAM

01 - Cabinet And Stirrer Parts


02 - Control Panel - Microwave


03 - Door And Latch Parts


04 - Lower Broiler Components


05 - Lower Oven Cabinet Parts - Rks 394


06 - Lower Oven Components


07 - Magnetron And Air Flow Parts


08 - Microwave Oven - Interior Parts

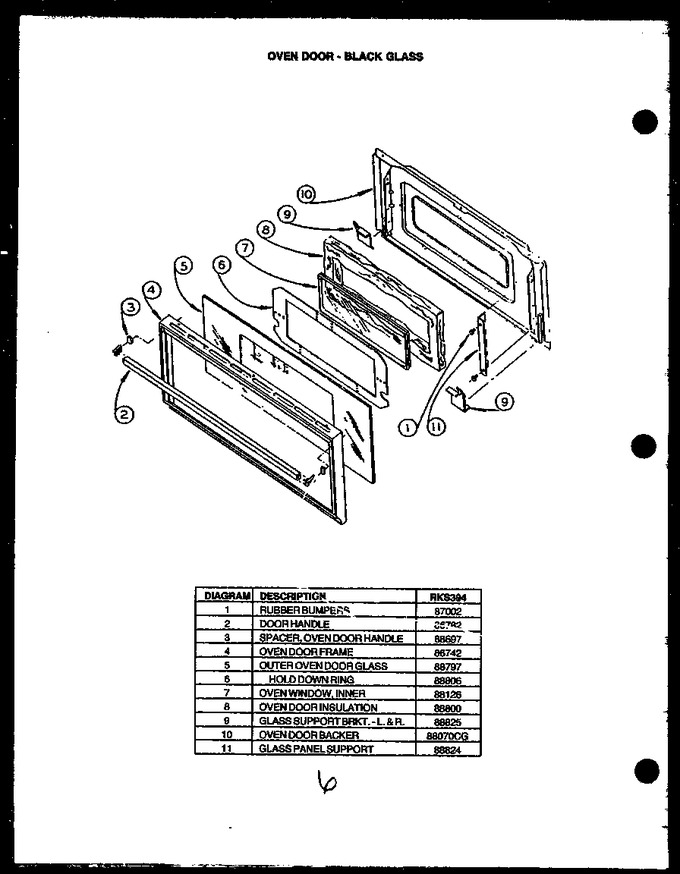

09 - Oven Door - Black Glass


10 - Top/burner W/spark Ignition


11 - Upper Electrical Components


12 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0087002		Sub 63661, Bumper, Ov. Dr.		Appelez-nous	-
2	Y0086782		Sub 57315, Handle, Door		Appelez-nous	-
3	Y0088697		Handle Spacer, Plastic (j)		Appelez-nous	-
4	86742		Oven Door Frame		Appelez-nous	-
5	Y0088797		Glass,oven Dr 29``x 14 13/16``		Appelez-nous	-
6	88806		Hold Down Ring Start At Code P		Appelez-nous	-
7	Y0088126		Sub 88647,window Assy Door		Appelez-nous	-
8	Y0088800		Sub 41966, Insulation		Appelez-nous	-
9	88825		Glass Support Brkt., L & R		Appelez-nous	-
10	88070CG		Sub 87717cg, Backer, Oven Door		Appelez-nous	-
11	0088824		Support, Glass Panel{j}		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
