New Model Search:

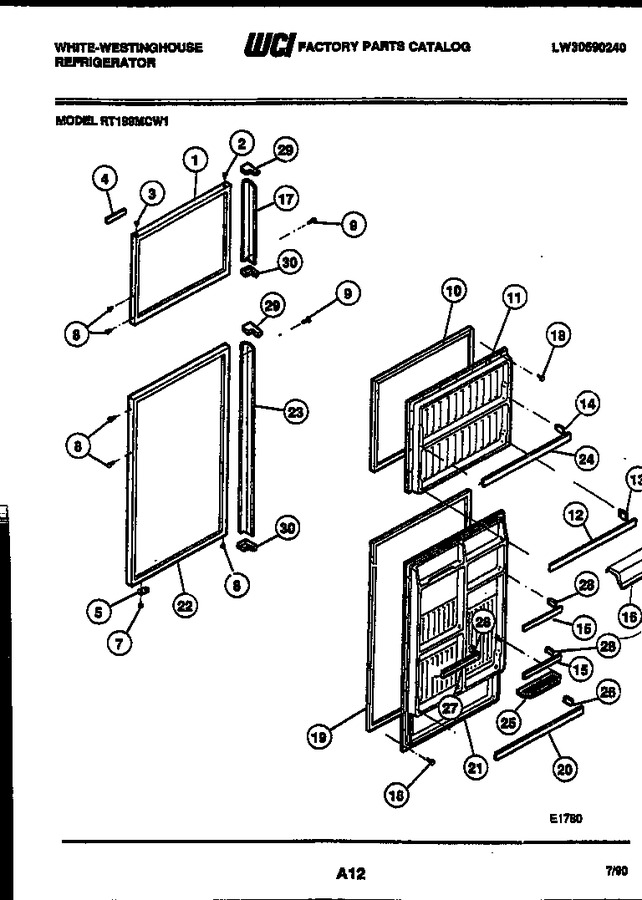

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916052 | Panel-freezer White |
|
- | |||||
| 2 | 5308000134 | Plug Button, White (2) |
|
$ 5.62 | |||||
| 3 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 4 | 3206159 | Nameplate |
|
- | |||||
| 5 | 530800255 | Door Stop (2) |
|
- | |||||
| 7 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 8 | 240494001 | Plug-button, White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 9 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 10 | 5303018791 | Gasket-freezer |
|
$ 130.56 | |||||
| 11 | 3206284 | Panel-freezer Inner |
|
- | |||||
| 12 | 3206289 | Rack-freezer |
|
- | |||||
| 13 | 3206161 | Support-rack Rh |
|
- | |||||
| 14 | 3206165 | Support-rack Rh |
|
Immediately | $ 8.19 | ||||
| 15 | 3206191 | Rack-refr (2) |
|
- | |||||
| 16 | 3206304 | Door-dairy-w/ Trim |
|
- | |||||
| 17 | 3206217 | Handle-freezer |
|
- | |||||
| 18 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 19 | 5303018792 | Gasket-refrigerator |
|
- | |||||
| 20 | 3206289 | Rack-refrigerator |
|
- | |||||
| 21 | 3206357 | Panel-refrigerator Inner |
|
- | |||||
| 22 | 5303916621 | Panel-refrigerator-white |
|
- | |||||
| 23 | 3206418 | Handle-ref |
|
- | |||||
| 24 | 3206288 | Rack-frzr |
|
- | |||||
| 25 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 26 | 5303206516 | Support - Rack - Rh |
|
- | |||||
| 27 | 3206300 | Rack-refr |
|
- | |||||
| 28 | 3206165 | Support - Rack - Rh (3) |
|
Immediately | $ 8.19 | ||||
| 29 | 5300177142 | Handle End-top (2) |
|
- | |||||
| 30 | 5300177143 | Handle End-bottom (2) |
|
- | |||||
| *31659 | 5300177144 | Clip-door Handle |
|
- | |||||
| *31659 | 5300179271 | Trim-handle End |
|
- | |||||
| *31659 | 5303007739 | Insulation - Fiberglass - Bulk |
|
- | |||||
| *31660 | 3206307 | Retainer-bottle |
|
- | |||||
| *31660 | 5303206514 | Snugger-door Rack (2) |
|
- | |||||
| 13A | 3206162 | Support-rack-lh |
|
- | |||||
| 14A | 3206166 | Support-rack Lh |
|
Immediately | $ 9.93 | ||||
| 16A | 3206302 | Trim-dairy Door (non-illustrated) |
|
- | |||||
| 26A | 5303206517 | Support - Rack - Lh |
|
$ 56.33 | |||||
| 28A | 3206166 | Support - Rack - Lh (3) |
|
Immediately | $ 9.93 | ||||
| 29A | 5300177144 | Clip-door Handle (non-illustrated) |
|
- | |||||
| 29B | 5300179270 | Trim-handle End (non-illustrated) |
|
- |
