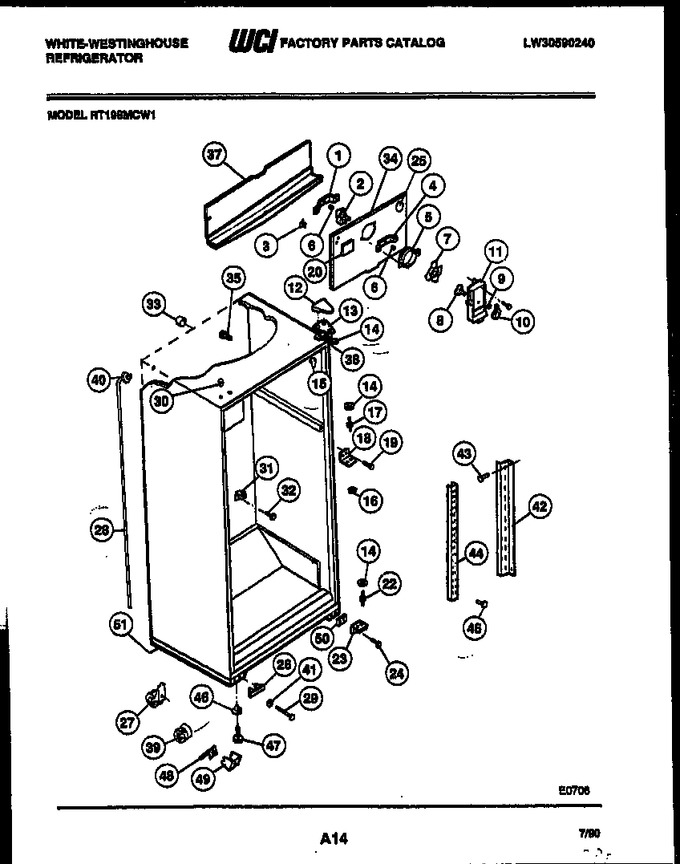

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303205119		Bracket, Rear		Appelez-nous	-
2	5300158289		Motor, Fan			Immediately	$ 149.94
3	5308000107		Connector Bracket				$ 33.23
4	5303001226		Bracket-front		Appelez-nous	-
5	5308000124		Orifice Ring				$ 53.58
6	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
7	5308000010		Fan Blade			Immediately	$ 49.03
8	5303001331		Damper				$ 31.71
9	5303001028		Push Nut - Damper		Appelez-nous	-
10	3206381		Knob - Damper Control		Appelez-nous	-
11	3206318		Cover - Fan		Appelez-nous	-
12	5308012820		Hinge Cover, White		Appelez-nous	-
13	5308012843		Hinge-top				$ 71.47
14	5308000007		Washer-hinge (3)		Appelez-nous	-
15	5303202336		Corner-trim (white)		Appelez-nous	-
16	5303001038		Washer-hinge				$ 13.34
17	5308000184		Pin-center Hinge				$ 8.87
18	5303001369		Bracket- Center Hinge		Appelez-nous	-
19	5308012258		Screw				$ 2.25
20	5303018193		Decorative Plug		Appelez-nous	-
22	5303001321		Pin, Bottom Hinge				$ 17.25
23	5303202834		Bracket, Bottom Hinge				$ 89.41
24	5303001320		Screw-mounting (2)		Appelez-nous	-
25	5303208309		Plug, Short Test Hole				$ 45.50
26	5303001478		Cover-hinge		Appelez-nous	-
27	5308009773		Roller-rear (2)		Appelez-nous	-
28	5303210377		Drain Tube				$ 109.31
29	5308009761		Bolt, Roller Adj (2)				$ 18.61
30	5303001388		Plug - Hinge - White (2)				$ 2.60
31	5308000056		Spout-drain Tube				$ 11.66
32	5303001361		Push Pin - Drain Spout		Appelez-nous	-
33	5303001198		Tube, Rubber (2)		Appelez-nous	-
34	5308009771		Cover, Evaporator Coil		Appelez-nous	-
35	5308000097		Support, Cover (2)		Appelez-nous	-
37	5303001470		Drain Trough		Appelez-nous	-
38	5303001037		Shim, Top Hinge				$ 12.39
39	5308009760		Roller Assy-front, (2)		Appelez-nous	-
40	5303207353		Ring - Seal				$ 6.81
41	5308011326		Washer-nylon (2)				$ 9.87
42	5308000302		Channel, Shelf Mtg, Side, (2)		Appelez-nous	-
43	5308010253		Screw-side Chnl Mtg (6)		Appelez-nous	-
44	5303015409		Channel-shelf Mtg, Center		Appelez-nous	-
45	5308016568		Screw-ctr Chnl Mtg (3)		Appelez-nous	-
46	5308003584		Nut-anchor (2)				$ 7.30
47	5303205540		Screw, Leveling (2)		Appelez-nous	-
48	5308009790		Spring, Roller Adj (2)				$ 4.30
49	5308013678		Support-cabinet Base (2)		Appelez-nous	-
50	5303001323		Shim-lower Hinge Brkt		Appelez-nous	-
51	5308010092		Base, Cabinet		Appelez-nous	-
*31666	5303001286		Ferrule-inner		Appelez-nous	-
*31666	5308016571		Plug - Liner (2)				$ 4.79
*31666	5303001287		Ferrule-outer		Appelez-nous	-
*31666	5308012296		Tapping Plate (4)				$ 47.44
11A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
11B	3206362		Label - Fan Cover (non-illustrated)		Appelez-nous	-
13A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
27A	5308009762		Screw-roller Mtg (2) (non-illustrated)		Appelez-nous	-
27A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
34A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
34B	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
3A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
5A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
