02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001505		Bottom, Freezer		Appelez-nous	-
2	5303206608		Shelf - Freezer		Appelez-nous	-
3	5308002662		Heater-mullion		Appelez-nous	-
4	5303206540		Trim - Crisper Cover		Appelez-nous	-
5	5303205987		Support-crisper Cover Adj				$ 48.41
6	5303206606		Cover - Crisper		Appelez-nous	-
7	5303206534		Pan - Crisper - Rh		Appelez-nous	-
8	5303200464		Spacer, Mullion (2)		Appelez-nous	-
9	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
10	3206130		Control Box		Appelez-nous	-
11	5303201777		Knob - Temperature Control		Appelez-nous	-
12	3206129		Switch-energy Saver		Appelez-nous	-
13	5308012258		Screw				$ 2.25
14	5303018894		Control-temperature		Appelez-nous	-
15	3018891		Housing, Cont Cap Tube		Appelez-nous	-
16	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
17	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
18	5303001179		Light Bulb		Appelez-nous	-
19	5309918806		Light Switch			Immediately	$ 21.97
20	3018993		Top - Refrigerator		Appelez-nous	-
21	5303206539		Glass Shelf-crisper Cvr		Appelez-nous	-
22	5308010008		Strap-mullion Mtg		Appelez-nous	-
23	3018994		Divider - Styrofoam		Appelez-nous	-
24	5303200366		Mullion, White				$ 70.04
26	5303211202		Glass-mk, Basket & Half Shelf (3)		Appelez-nous	-
27	5303209263		Retainer, Glass (3)		Appelez-nous	-
28	5303209869		Frame-mk, Basket & Half Shelf (3)		Appelez-nous	-
29	5303001324		Ice Tray (2)		Appelez-nous	-
30	5303206528		Trim-mk, Basket & Half Shelf (3)		Appelez-nous	-
31	5303210016		Hanger - Meat Pan & Basket - Lh (2)				$ 134.09
32	08014528		Screw - Hanger (12)				$ 4.31
34	5303211203		Shelf-glass-full Shelf		Appelez-nous	-
35	5303209274		Retainer-glass-full Shelf		Appelez-nous	-
36	5303210022		Frame-full Shelf		Appelez-nous	-
37	5303206523		Trim-full Shelf		Appelez-nous	-
38	5303206542		Pan - Meat		Appelez-nous	-
39	5303206543		Basket-sliding-ref		Appelez-nous	-
40	5303206541		Trim - Meat Pan		Appelez-nous	-
41	3206311		Pan - Crisper - Lh		Appelez-nous	-
42	3206317		Trim-crisper Pan-rh		Appelez-nous	-
43	3201150		Cap-protector				$ 4.57
44	5303206521		Hanger-frzr Basket-rh		Appelez-nous	-
45	5303206610		Basket-sliding-frzr		Appelez-nous	-
46	3206308		Trim-crisper Pan-lh		Appelez-nous	-
47	3204206		Deflector - Air		Appelez-nous	-
48	5303001546		Cover - Air Deflector		Appelez-nous	-
*31672	5303206525		Divider-freezer		Appelez-nous	-
*31672	5303206533		Rack - Hanging - Egg		Appelez-nous	-
*31673	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*31673	5318609501		Rack-ice Tray		Appelez-nous	-
10A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
14A	5303001260		Screw				$ 6.73
16A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
20A	5303001380		Screw		Appelez-nous	-
23A	3018900		Wiring Harness - Divider (non-illustrated)		Appelez-nous	-
23B	3205266		Protector-edge (2) (non-illustrated)				$ 80.09
2A	5303206609		Trim - Shelf (non-illustrated)		Appelez-nous	-
2B	5304509705		Grommet-shelf Mtg-rh (4) (non-illustrated)   (Replaces: 5303001609)				$ 10.01
2C	5304500407		Grommet-shelf Mtg-lh (4) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
31A	5303210017		Hanger - Meat Pan & Basket - Rh (2) (non-illustrated)				$ 107.89
44A	5303206522		Hanger-frzr Basket-lh		Appelez-nous	-
6A	5303200329		Gasket - Crisper Cover		Appelez-nous	-

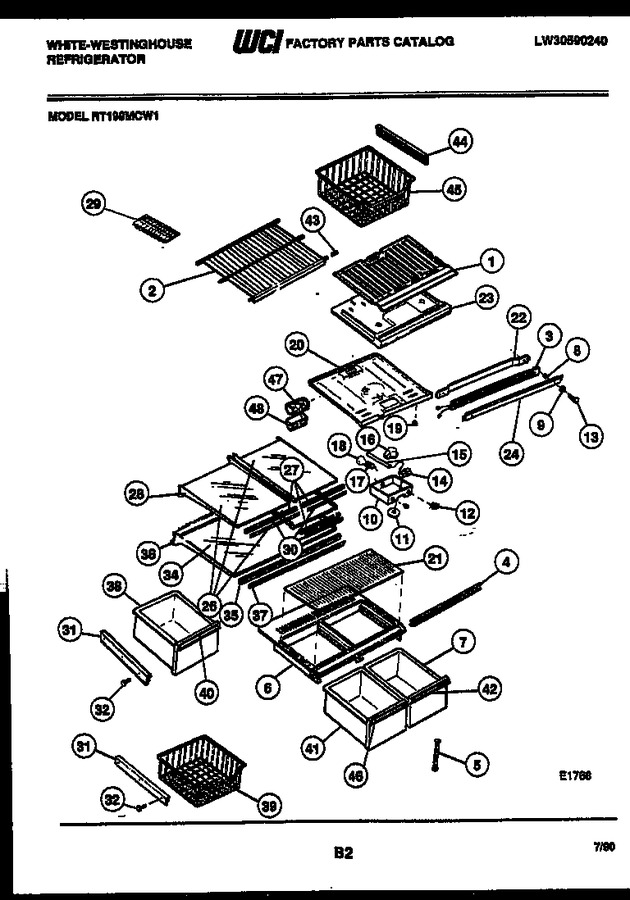

    View Diagram in Separate Window       Print Part List
