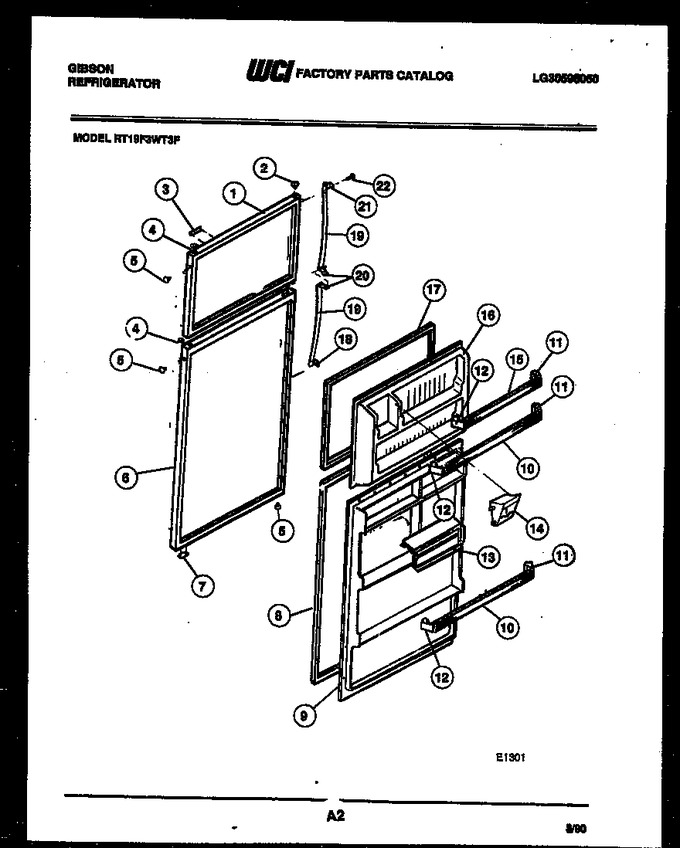

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178690-11		Freezer Door-almond		Appelez-nous	-
1	G178690		Freezer Door-white		Appelez-nous	-
1	G178690-08		Freezer Door-avoc		Appelez-nous	-
1	G178690-09		Freezer Door-wheat		Appelez-nous	-
1	G178690-10		Freezer Door-coffee		Appelez-nous	-
2	G169332-11		Button Plug, Almond		Appelez-nous	-
2	G169332-01		Button Plug, White		Appelez-nous	-
2	G169332-08		Button Plug-avocado		Appelez-nous	-
2	G169332-09		Button Plug, Wheat		Appelez-nous	-
2	G169332-10		Button-plug, Coffee		Appelez-nous	-
3	G175117-02		Nameplate		Appelez-nous	-
4	G183138		Bearing Hinge (8)		Appelez-nous	-
5	G162977-09		Button Plug-wheat		Appelez-nous	-
5	G162977-11		Button Plug-almond		Appelez-nous	-
5	G162977-10		Button Plug-coffee		Appelez-nous	-
5	G162977-08		Button Plug-avocado		Appelez-nous	-
5	G162977-01		Button Plug-white		Appelez-nous	-
6	G178694-10		Refr Door-coffee		Appelez-nous	-
6	G178694-08		Refr Door-avocado		Appelez-nous	-
6	G178694-09		Refr Door-wheat		Appelez-nous	-
6	G178694		Refr Door-white		Appelez-nous	-
6	G178694-11		Refr Door-almond		Appelez-nous	-
7	G155072		Door Stop-refr/frzr (2)		Appelez-nous	-
8	G186932-13		Gasket-refr Door		Appelez-nous	-
9	G187452-02		Inner Panel-refr		Appelez-nous	-
10	G161019-60		Rack-door (3)		Appelez-nous	-
11	G178287-02		Support-rs (4)		Appelez-nous	-
12	G178284-02		Support-ls (4)		Appelez-nous	-
13	G187460-01		Dairy Door		Appelez-nous	-
14	3202032		Dispenser-juice Can		Appelez-nous	-
15	G161019-59		Rack-frzr-upper		Appelez-nous	-
16	3203048		Inner Panel-freezer		Appelez-nous	-
17	G186932-12		Gasket, Freezer Door		Appelez-nous	-
18	G179801		Handle End-bottom		Appelez-nous	-
19	G170495-24		Grip-handle (2)		Appelez-nous	-
20	G187329-01		Handle End (2)		Appelez-nous	-
21	G179800		Handle End-top		Appelez-nous	-
22	G185566		Screw		Appelez-nous	-
*30925	G89643		Insulation-door (bulk)		Appelez-nous	-
16A	G162585		Screw		Appelez-nous	-
3A	G188378-02		Label-nameplate Upr (non-illustrated)		Appelez-nous	-
3B	3019041		Label-nameplate Lwr (non-illustrated)		Appelez-nous	-
3C	G153407-60		Tape-nameplate Mtg (non-illustrated)		Appelez-nous	-
7A	G185566		Screw		Appelez-nous	-
9A	G162585		Screw		Appelez-nous	-
