02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

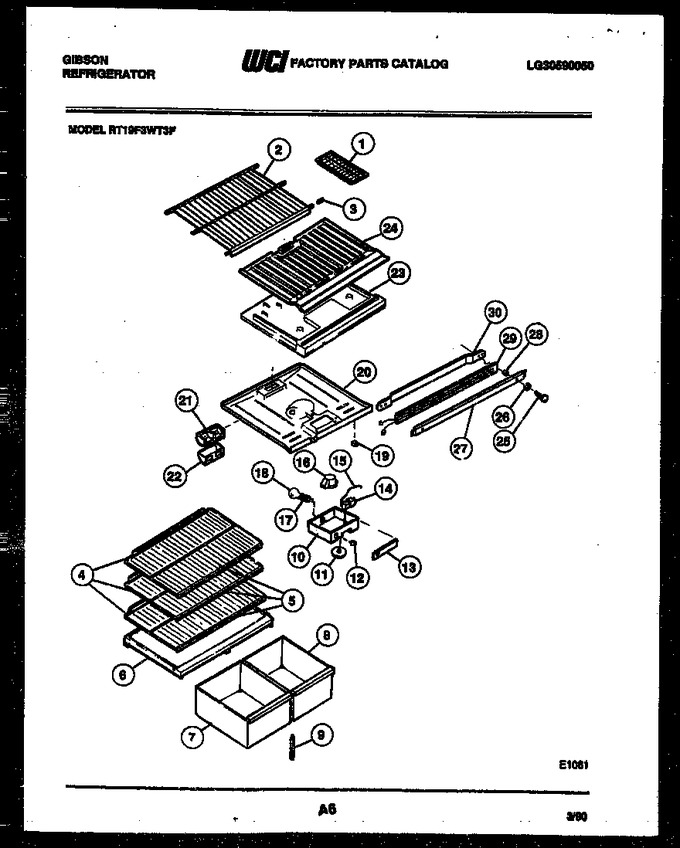

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G156376-13		Ice Tray (2)		Appelez-nous	-
2	G184572-04		Shelf - Freezer		Appelez-nous	-
3	3201150		End Cap-shelf (2)				$ 4.57
4	G181153-06		Shelf-refr (3)		Appelez-nous	-
5	G172410-06		Trim-shelf (3)		Appelez-nous	-
6	G490064-01		Cover-pan		Appelez-nous	-
7	G490015-39		Pan-small Ls		Appelez-nous	-
8	G176639-23		Pan-large Rs		Appelez-nous	-
9	5303205987		Support-cover Adj				$ 48.41
10	G176722-03		Control Box		Appelez-nous	-
11	G490107-02		Knob-temp Control		Appelez-nous	-
12	G178402-02		Switch-energy Saver		Appelez-nous	-
13	G188379-01		Label-control Box		Appelez-nous	-
14	3200810		Control-temperature		Appelez-nous	-
15	G142176-11		Sleeve-plastic Tube		Appelez-nous	-
16	G187484		Timer-defrost		Appelez-nous	-
17	G168302		Light Socket		Appelez-nous	-
18	G25806		Light Bulb		Appelez-nous	-
19	G187200		Light Switch		Appelez-nous	-
20	3016367		Top-refrigerator		Appelez-nous	-
21	G162675		Air Deflector		Appelez-nous	-
22	G162178		Cover, Deflector		Appelez-nous	-
23	G176777		Divider, Styrofoam		Appelez-nous	-
24	G185912		Bottom, Freezer		Appelez-nous	-
25	G183103		Screw-mullion (4)		Appelez-nous	-
26	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
27	3200366		Mullion-white		Appelez-nous	-
27	3200370		Mullion-almond		Appelez-nous	-
27	3200369		Mullion-coffee		Appelez-nous	-
27	3200368		Mullion-wheat		Appelez-nous	-
27	3200367		Mullion-avocado		Appelez-nous	-
28	3200464		Spacer-mullion (2)		Appelez-nous	-
29	G177254		Heater, Mullion		Appelez-nous	-
30	G490087		Strap, Mullion Mtg		Appelez-nous	-
10A	G187363		Screw		Appelez-nous	-
14A	G107080		Screw		Appelez-nous	-
16A	G105289		Screw		Appelez-nous	-
20A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
