02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

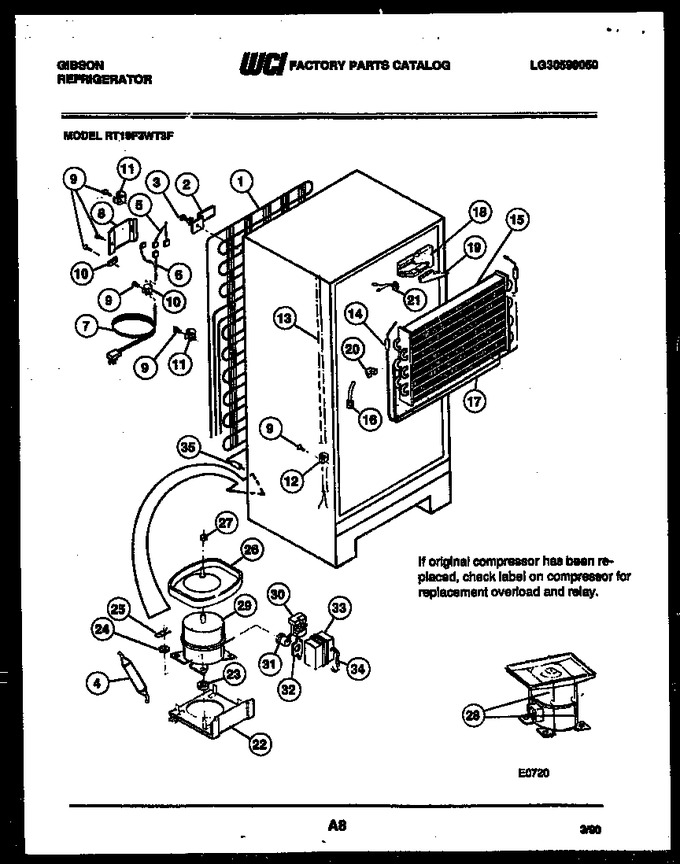

| 1 | G162739 | Condenser |
|
- | |||||
| 2 | G164637 | Bracket, Cond. Mtg. (4) |
|
- | |||||
| 3 | G160578 | Screw |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | G174818 | Wiring Harness-control |
|
- | |||||
| 6 | G166062-01 | Wiring, Harness, Compressor |
|
- | |||||
| 7 | G162549-01 | Service Cord |
|
- | |||||
| 8 | G183584 | Cover, Wiring |
|
- | |||||
| 9 | G187009 | Screw-8-15 X 1/2 |
|
- | |||||
| 10 | G27669 | Clamp-cable (3) |
|
- | |||||
| 11 | G168978 | Clamp-harness |
|
- | |||||
| 12 | G88088 | Clamp-exchanger |
|
- | |||||
| 13 | G177531 | Heat Exchanger |
|
- | |||||
| 14 | G178425-01 | Heater, Defrost |
|
- | |||||
| 15 | G164572 | Evaporator Coil |
|
- | |||||
| 16 | G165546 | Strap-evap/heater (2) |
|
- | |||||
| 17 | G169024-04 | Insulator-evap |
|
- | |||||
| 18 | G185299 | Insulation Block Rs |
|
- | |||||
| 19 | G185276 | Insulation Plug Rs |
|
- | |||||
| 20 | G188375 | Insulation Block Ls |
|
- | |||||
| 21 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 22 | G184599 | Plate-compr Mtg |
|
- | |||||
| 23 | G177617 | Grommet (4) |
|
- | |||||
| 24 | G164634 | Washer (4) |
|
- | |||||
| 25 | G163204 | Clip (4) |
|
- | |||||
| 26 | G184715 | Drain Pan |
|
- | |||||
| 27 | G164958 | Lock Nut-pan Mtg |
|
- | |||||
| 28 | 3916001 | Pan Retainer Kit-service |
|
- | |||||
| 29 | 5303916020 | Compressor W/electricals-service |
|
- | |||||
| 30 | 216594300 | Relay (Replaces: 3204486) |
|
$ 28.92 | |||||
| 31 | 3204487 | Overload |
|
- | |||||
| 32 | G188957 | Clip-overload |
|
- | |||||
| 33 | G169333 | Cover-terminal |
|
- | |||||
| 34 | G166057 | Strap-term Cover |
|
- | |||||
| 35 | 5303017691 | Spacer-tube (3) |
|
$ 64.91 | |||||
| *30959 | G189383 | Hot Tube Repair Kit-service |
|
- | |||||
| 26A | G169873 | Sound Tape-pan (non-illustrated) |
|
- | |||||
| 3A | G164820 | Washer-no. 10 Ext Tooth (non-illustrated) |
|
- |
