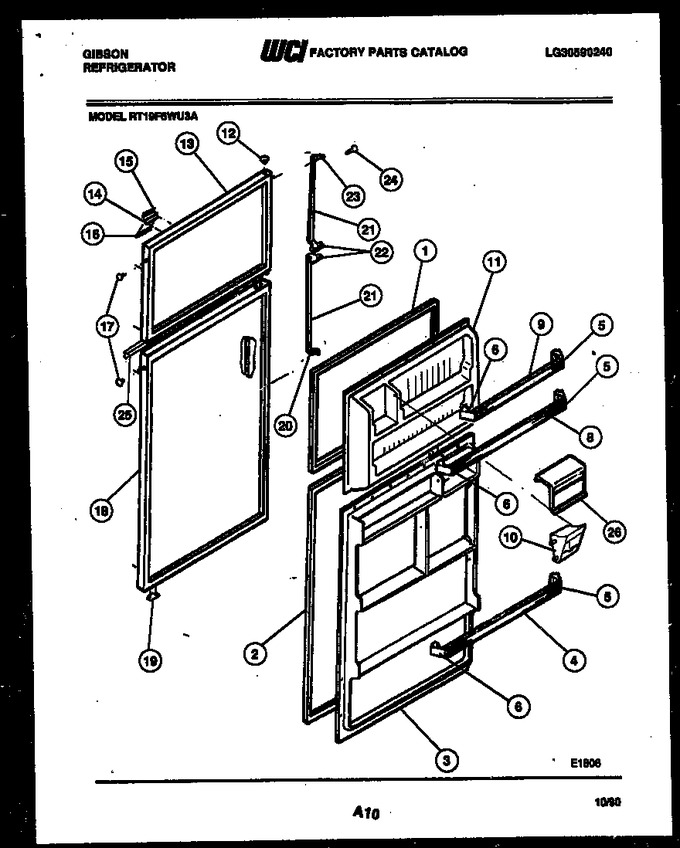

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-freezer |
|
- | |||||
| 2 | 5308015544 | Gasket-refrigerator |
|
- | |||||
| 3 | G187452-02 | Inner Panel - Regrigerator |
|
- | |||||
| 4 | G161019-65 | Rack-refrigerator Door (2) |
|
- | |||||
| 5 | 5317828702 | Support - Rh (4) |
|
- | |||||
| 6 | 5318728402 | Support - Lh (4) |
|
- | |||||
| 7 | G187460-01 | Dairy Door |
|
- | |||||
| 8 | G187460-01 | Dairy Door |
|
- | |||||
| 9 | G161019-65 | Rack-freezer-upper |
|
- | |||||
| 10 | 3202032 | Dispenser-juice Can |
|
- | |||||
| 11 | 3203048 | Inner Panel-freezer |
|
- | |||||
| 12 | 5303001308 | Plug-almond |
|
- | |||||
| 12 | 5308000134 | Plug-white |
|
$ 5.62 | |||||
| 12 | 5303001657 | Plug-coffee |
|
- | |||||
| 12 | 5308000176 | Plug-wheat |
|
- | |||||
| 12 | 5308000175 | Plug-avocado |
|
- | |||||
| 13 | 5317869009 | Freezer Panel - Wheat |
|
- | |||||
| 13 | 5317869011 | Freezer Panel - Almond |
|
- | |||||
| 13 | 5317869010 | Freezer Panel - Coffee |
|
- | |||||
| 13 | 5300178690 | Freezer Panel - White |
|
- | |||||
| 13 | 5317869008 | Freezer Panel-avocado |
|
- | |||||
| 14 | 5317511702 | Nameplate - Frame |
|
- | |||||
| 15 | 5318837802 | Label - Nameplate - Upper |
|
- | |||||
| 16 | 3019041 | Label-nameplate Lower |
|
- | |||||
| 17 | 5308000178 | Plug - Coffee |
|
- | |||||
| 17 | 240494001 | Plug - White (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 17 | 5308000179 | Plug - Avocado |
|
- | |||||
| 17 | 5308000180 | Plug - Wheat |
|
- | |||||
| 17 | 5308000181 | Plug - Almond |
|
- | |||||
| 18 | 5300178694 | Refrigerator Panel - White |
|
- | |||||
| 18 | 5317869410 | Refrigerator Panel - Coffee |
|
- | |||||
| 18 | 5317869411 | Refrigerator Panel - Almond |
|
- | |||||
| 18 | 5317869409 | Refrigerator Panel - Wheat |
|
- | |||||
| 18 | 5317869408 | Refrigerator Panel - Avocado |
|
- | |||||
| 19 | 5308000255 | Door Stop (2) |
|
$ 42.20 | |||||
| 20 | 5303001295 | Handle - End Bottom |
|
- | |||||
| 21 | 5317049526 | Grip - Handle |
|
- | |||||
| 22 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 23 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 24 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 25 | G167150-12 | Trim Top Refr Door |
|
- | |||||
| 26 | G187460-02 | Dairy Door |
|
- | |||||
| *32890 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 11A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 13A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 14A | 5215340760 | Tape - Nameplate (non-illustrated) |
|
- | |||||
| 18A | 5308012007 | Bearing-hinge (4) (non-illustrated) |
|
- | |||||
| 19A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 3A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 |
