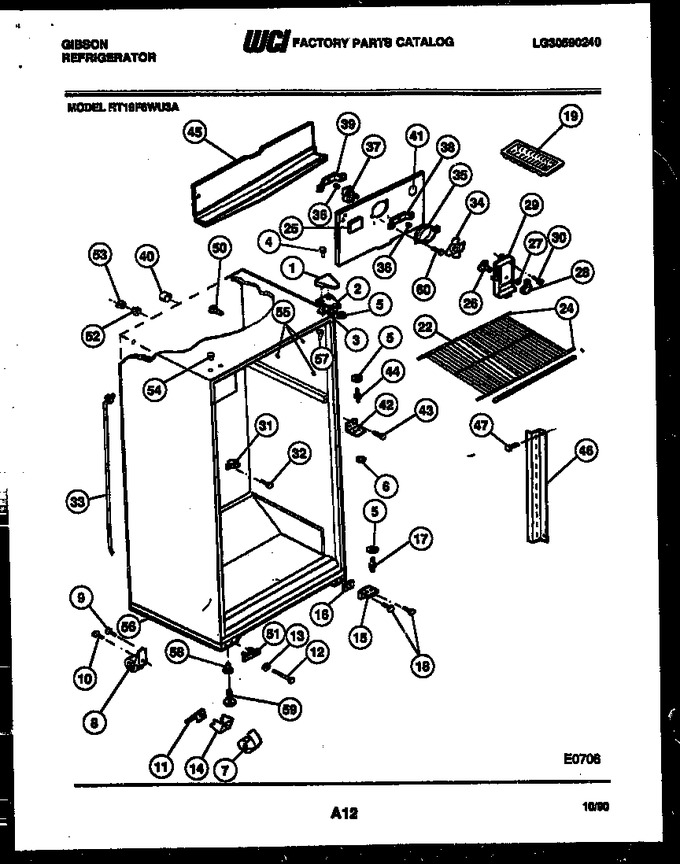

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001666		Cover - Hinge-coffee		Appelez-nous	-
1	5308012820		Cover - Hinge-white		Appelez-nous	-
1	5308012933		Cover - Hinge-almd		Appelez-nous	-
1	5303001664		Cover - Hinge-avoc		Appelez-nous	-
1	5303001665		Cover - Hinge-wheat		Appelez-nous	-
2	5308012843		Hinge-top				$ 71.47
3	5303001037		Shim, Top Hinge				$ 12.39
4	241710601		Screw   (Replaces: 5303001479)				$ 13.46
5	5308000007		Washer-hinge (3)		Appelez-nous	-
6	5303001038		Washer Hinge (2)				$ 13.34
7	5308009760		Roller Assembly		Appelez-nous	-
8	5308009773		Roller Assembly		Appelez-nous	-
9	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
10	5308009762		Bolt - Rear Roller (2)		Appelez-nous	-
11	5308009790		Spring - Adj (2)				$ 4.30
12	5308009761		Bolt, Roller Adj (2)				$ 18.61
13	5308011326		Washer (2)				$ 9.87
14	5308013678		Support, Base (2)		Appelez-nous	-
15	5303202834		Hinge Bracket - Bottom				$ 89.41
16	5303001323		Shim, Bottom Hinge		Appelez-nous	-
17	5303001321		Pin, Bottom Hinge				$ 17.25
18	5303001320		Screw (2)		Appelez-nous	-
19	5303001324		Ice Tray (2)		Appelez-nous	-
22	G177059-09		Shelf - Freezer		Appelez-nous	-
24	3201150		Cap - Protector Shelf (2)				$ 4.57
25	5308013636		Button - Decorative Plug		Appelez-nous	-
26	5303001331		Damper				$ 31.71
27	5303001028		Nut, Push		Appelez-nous	-
28	5308011763		Knob - Damper Control		Appelez-nous	-
29	5316306176		Cover - Fan		Appelez-nous	-
30	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
31	5308000056		Spout Drain				$ 11.66
32	5303001361		Pin, Push, (2)		Appelez-nous	-
33	5303210377		Tube - Drain And Ring Seal				$ 109.31
34	5308000010		Fan Blade			Immediately	$ 49.03
35	5308000124		Ring, Orifice				$ 53.58
36	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
37	5300158289		Motor, Fan			Immediately	$ 149.94
38	5303001226		Bracket-front		Appelez-nous	-
39	5303001227		Bracket-rear		Appelez-nous	-
40	5303001198		Tube-rubber		Appelez-nous	-
41	5308009771		Cover, Coil		Appelez-nous	-
42	5303001369		Hinge-bracket Center		Appelez-nous	-
43	5308012258		Screw				$ 2.25
44	5308000184		Pin-center Hinge				$ 8.87
45	5303001470		Trough-drain		Appelez-nous	-
46	5308000302		Channel, Rh And Lh		Appelez-nous	-
47	5308010253		Screw (6)		Appelez-nous	-
50	5308000097		Support, Coil Cover (2)		Appelez-nous	-
51	5303001478		Button-plug		Appelez-nous	-
52	5303001286		Ferrule-inner		Appelez-nous	-
53	5303001287		Ferrule-outer		Appelez-nous	-
54	5303001679		Button-hinge (coffee)		Appelez-nous	-
54	5303001388		Button-hinge (white)				$ 2.60
54	5303001677		Button-hinge-avocado		Appelez-nous	-
54	5303001678		Button-hinge-wheat		Appelez-nous	-
54	5303001389		Button-hinge-almond		Appelez-nous	-
55	5304509705		Grommet Rh Shelf Mtg (4)   (Replaces: 5303001609)				$ 10.01
56	5308010092		Cabinet Base		Appelez-nous	-
57	5303202337		Corner Trim - Avocado		Appelez-nous	-
57	5303202340		Corner Trim-almond		Appelez-nous	-
57	5303202339		Corner Trim - Coffee		Appelez-nous	-
57	5303202338		Corner Trim, Wheat		Appelez-nous	-
57	5303202336		Corner-trim (white)		Appelez-nous	-
58	5308003584		Anchor Nut (2)				$ 7.30
59	5303205540		Leveling Screw		Appelez-nous	-
60	218843801		Screw   (Replaces: 5303001001)				$ 14.41
*32907	5308012296		Tapping Plate (4)				$ 47.44
*32907	5308016571		Button - Liner (3)				$ 4.79
29A	5300186232		Label - Fan Cover (non-illustrated)		Appelez-nous	-
33A	5303207353		Ring Seal (non-illustrated)				$ 6.81
39A	5303210353		Screw-brkt (non-illustrated)		Appelez-nous	-
39B	5308000107		Bracket-connector (non-illustrated)				$ 33.23
41A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
41B	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
43A	5308003607		Washer - Steel (non-illustrated)				$ 1.00
55A	5304500407		Grommet Lh Shelf Mtg (4) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
