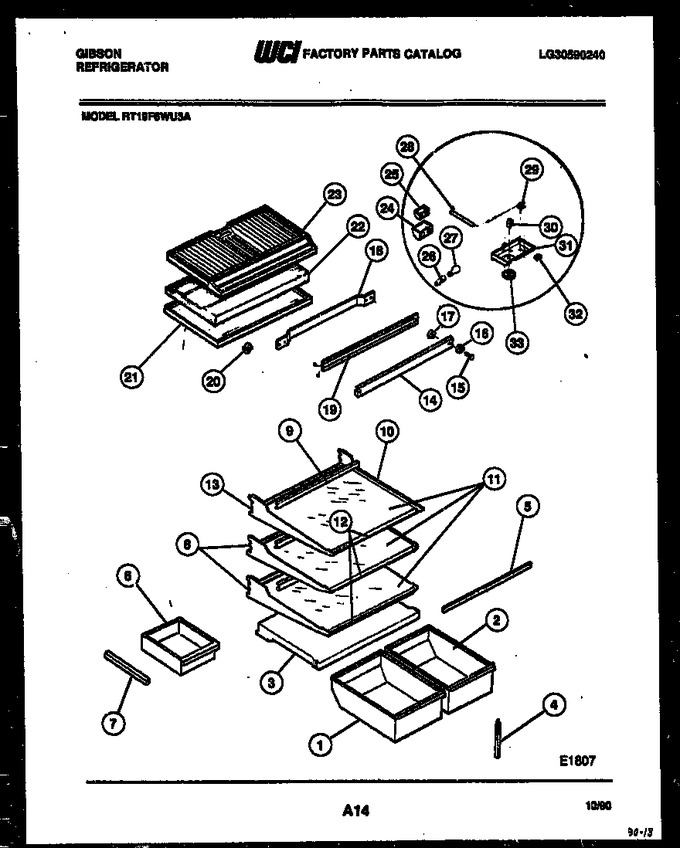

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G490015-46 | Pan-crisper Lh |
|
- | |||||
| 2 | 5317663928 | Pan - Crisper Rh |
|
- | |||||
| 3 | 5303001493 | Cover-crisper |
|
- | |||||
| 4 | 5303205987 | Support-cover |
|
$ 48.41 | |||||
| 5 | 5303200329 | Gasket, Cover |
|
- | |||||
| 6 | G187181-01 | Meat Pan |
|
- | |||||
| 7 | 5303210016 | Hanger-pan Lh |
|
$ 134.09 | |||||
| 8 | 3200327 | Frame - Glass Shelf (2) |
|
- | |||||
| 9 | 5303206854 | Trim-rear (3) |
|
- | |||||
| 10 | 3200901 | Support-rail |
|
- | |||||
| 11 | 5303206856 | Shelf-glass (3) |
|
- | |||||
| 12 | 5303206857 | Trim-front (3) |
|
- | |||||
| 13 | 3200398 | Frame - Meat Pan Shelf |
|
- | |||||
| 14 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 14 | 5303200367 | Mullion - Avocado |
|
- | |||||
| 14 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 14 | 5303200370 | Mullion, Almond |
|
- | |||||
| 14 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 15 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 16 | 5303206754 | Washer (2) |
|
- | |||||
| 17 | 5303200464 | Spacer (2) |
|
- | |||||
| 18 | 5308010008 | Strap-mullion |
|
- | |||||
| 19 | 5303210351 | Heater-mullion |
|
- | |||||
| 20 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 21 | 3018993 | Top - Refrigerator |
|
- | |||||
| 22 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 23 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 24 | 5303001546 | Cover, Deflector |
|
- | |||||
| 25 | 3204206 | Deflector - Air |
|
- | |||||
| 26 | 218906802 | Socket, Light (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 27 | 5303001179 | Bulb |
|
- | |||||
| 28 | 3018891 | Housing-control Tube |
|
- | |||||
| 29 | 5303018894 | Control-temp |
|
- | |||||
| 30 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 31 | 5303206574 | Box-control |
|
- | |||||
| 32 | 5303206872 | Switch-energy |
|
- | |||||
| 33 | 5303201777 | Knob - Control |
|
- | |||||
| *32919 | 3018900 | Harness - Wiring Divider |
|
- | |||||
| *32919 | 3205266 | Protector-edge |
|
$ 80.09 | |||||
| 10A | 3200321 | Retainer-shelf (3) (non-illustrated) |
|
- | |||||
| 21A | 5303001380 | Screw |
|
- | |||||
| 29A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 30A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303210017 | Hanger-pan Rh (non-illustrated) |
|
$ 107.89 | |||||
| 7B | 08014528 | Screw (2) (non-illustrated) |
|
$ 4.31 |
