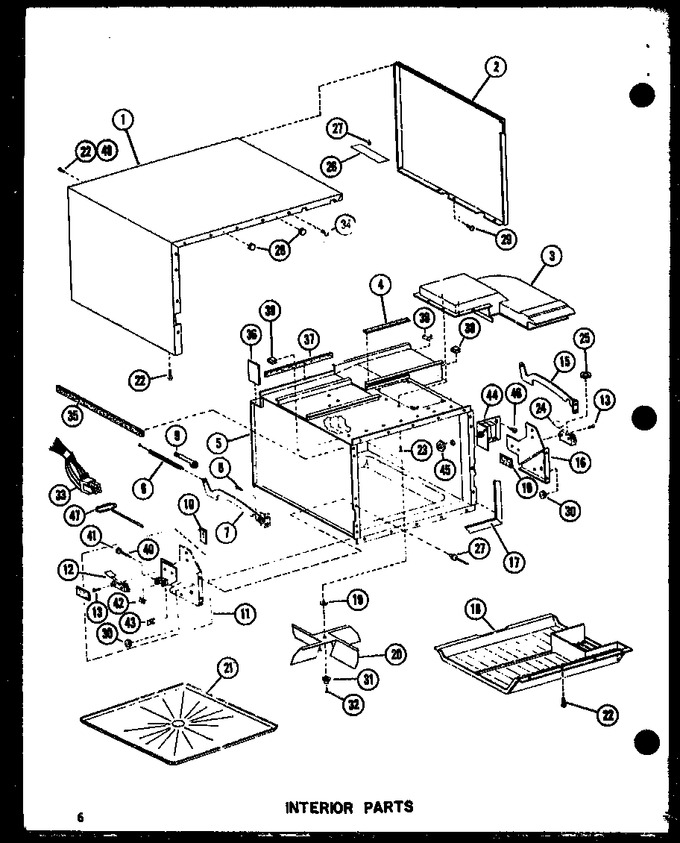

01 - Interior Parts


02 - Interior Parts


03 - Page 1


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7257502		Wrapper-oc		Appelez-nous	-
2	C8735403		Access Panel		Appelez-nous	-
3	D7258706		Duct, Air Discharge		Appelez-nous	-
4	A3030302		Gasket		Appelez-nous	-
5	D7168311		Weldment, Oven Cavity		Appelez-nous	-
6	M0775001		Spring		Appelez-nous	-
7	B5693102		Arm, Counterbalance, Left Hand		Appelez-nous	-
8	M0258518		Screw		Appelez-nous	-
9	R0193032		Screw Remover				$ 31.92
10	M0050902		X$x Pad		Appelez-nous	-
11	C8783106		Bracket L.h. Assembly With Rol		Appelez-nous	-
12	A3162510		Switch-l Intl A		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
15	B5693101		Arm, Counterbalance, R.h.		Appelez-nous	-
16	C8783102		Bracket R.h. Assembly With Rol		Appelez-nous	-
17	C3637201		Gasket		Appelez-nous	-
18	D7279701		Grease Shield		Appelez-nous	-
19	B5704203		Bushing-stirrer Mt		Appelez-nous	-
20	C8720801		Xfan Blade-stirrer		Appelez-nous	-
21	D7089602		Oven Tray Kit		Appelez-nous	-
22	M0230015		Screw		Appelez-nous	-
23	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
24	C8736704		Switch		Appelez-nous	-
25	A3145101		Washer K		Appelez-nous	-
26	B5738501		Seal K		Appelez-nous	-
27	A4539601		Pop Rivet		Appelez-nous	-
28	A1511502		Bumper		Appelez-nous	-
29	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
30	R0157145		Roller Assy Kit		Appelez-nous	-
31	A3214801		Bearing		Appelez-nous	-
32	A3214902		Shoulder Screw		Appelez-nous	-
33	D7331201		Wiring Harness		Appelez-nous	-
34	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
35	A3263901		Gasket		Appelez-nous	-
36	B5695301		Gasket		Appelez-nous	-
37	B5695302		Gasket, Air Sealing		Appelez-nous	-
38	M0118801		Clip		Appelez-nous	-
40	A3277601		Screw Adjusting A-k		Appelez-nous	-
41	A3277801		Guide Screw A-k		Appelez-nous	-
42	A3277701		Spring A		Appelez-nous	-
43	M0286105		Speed Nut		Appelez-nous	-
44	B5771901		Switch, Jack Assembly		Appelez-nous	-
45	A3275701		Nut-decorative		Appelez-nous	-
46	M0234008		Screw		Appelez-nous	-
47	R0193039		Adj Tool-interlock		Appelez-nous	-
