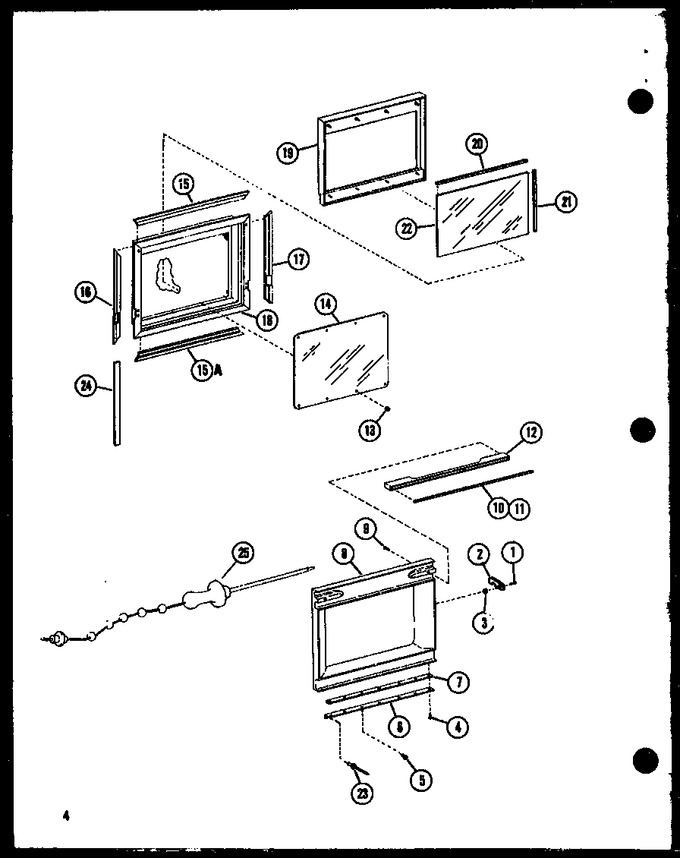

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3183901		Rivet		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	M0287401		Nut		Appelez-nous	-
4	M0227501		Screw		Appelez-nous	-
5	M0214503		Screw		Appelez-nous	-
6	B5603203		Hinge		Appelez-nous	-
7	A3127101		Shim		Appelez-nous	-
7	A3127102		Shim		Appelez-nous	-
8	D7238603		Door Outer		Appelez-nous	-
9	M0234117		Screw		Appelez-nous	-
10	B5604802		Insert-handle		Appelez-nous	-
11	A0059103		Adhesive Ec-4475		Appelez-nous	-
12	D3964801		Handle		Appelez-nous	-
13	M0288801		Nut K		Appelez-nous	-
14	A3254901		Window Outer A		Appelez-nous	-
15	D7320001		Gasket Top A		Appelez-nous	-
15	D7320002		Gasket Bottom A		Appelez-nous	-
16	D7320004		Gasket Left A		Appelez-nous	-
17	D7320003		Gasket Right A		Appelez-nous	-
18	C8755401		Inner Door Assy A		Appelez-nous	-
19	D7240301		Inner Door Mold Assy		Appelez-nous	-
20	A3264601		Gasket Window A-k		Appelez-nous	-
21	A3264602		Gasket Window A-k		Appelez-nous	-
22	A3167901		Inner Window A-k		Appelez-nous	-
23	A4539602		Pop Rivet		Appelez-nous	-
24	M0275140		Tape Per Roll		Appelez-nous	-
25	B5766701		Temp Probe		Appelez-nous	-
