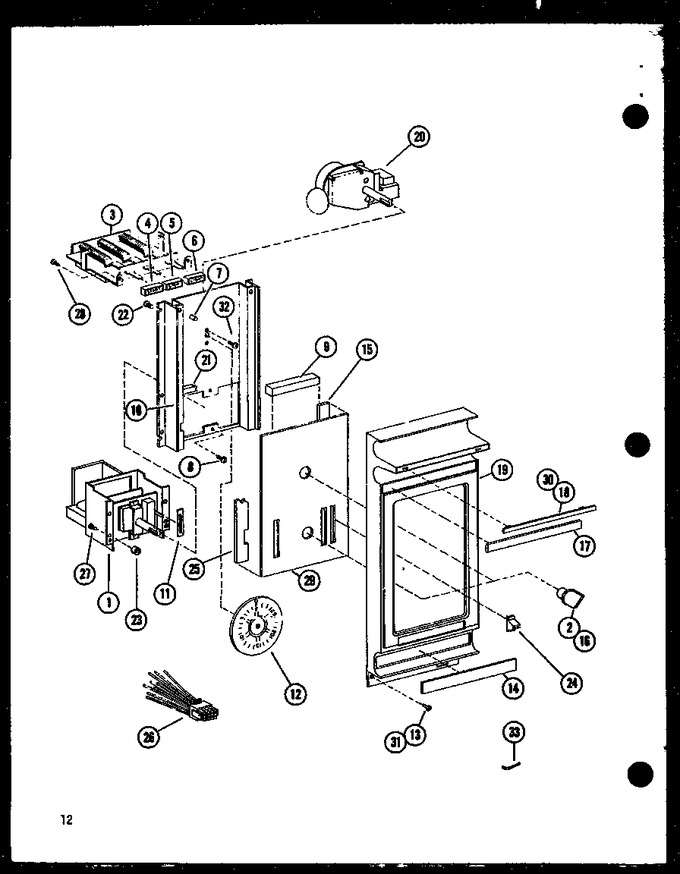

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7325901		See Svc Ltr R226		Appelez-nous	-
2	B5772001		Knob-temp Indicator		Appelez-nous	-
3	C8787802		Switch Ssl K		Appelez-nous	-
4	C8743101		Button (start) K		Appelez-nous	-
5	C8743102		Button (stop) K		Appelez-nous	-
6	C8743103		Button (light)		Appelez-nous	-
7	M1200104		Pin		Appelez-nous	-
8	M0202528		Screw		Appelez-nous	-
9	A4591128		Gasket		Appelez-nous	-
10	C8787601		Extrusion-control		Appelez-nous	-
11	A3279501		Cover-dust		Appelez-nous	-
12	C8787401		Disc-30 Min Timer		Appelez-nous	-
13	M0229916		Screw T.c		Appelez-nous	-
14	B5741301		Nameplate K		Appelez-nous	-
15	A3259201		Gasket		Appelez-nous	-
16	C8735901		Knob		Appelez-nous	-
17	B5770102		Nameplate		Appelez-nous	-
18	B5703901		Insert- K		Appelez-nous	-
19	D7255301		Escutcheon, Control		Appelez-nous	-
20	C8791701		Timer		Appelez-nous	-
21	A3030306		Gasket		Appelez-nous	-
22	M0234016		Screw		Appelez-nous	-
23	A3284601		Sleeve		Appelez-nous	-
24	B5742501		Knob-control		Appelez-nous	-
25	A3285801		Gasket		Appelez-nous	-
26	C8789501		Wiring Harness		Appelez-nous	-
27	M0234114		Screw		Appelez-nous	-
28	M0234003		Screw		Appelez-nous	-
29	C8787701		Lens-escutcheon		Appelez-nous	-
30	M0910002		Adhesive		Appelez-nous	-
31	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
32	M0234016		Screw		Appelez-nous	-
33	A4696103		Wrench-hex		Appelez-nous	-
