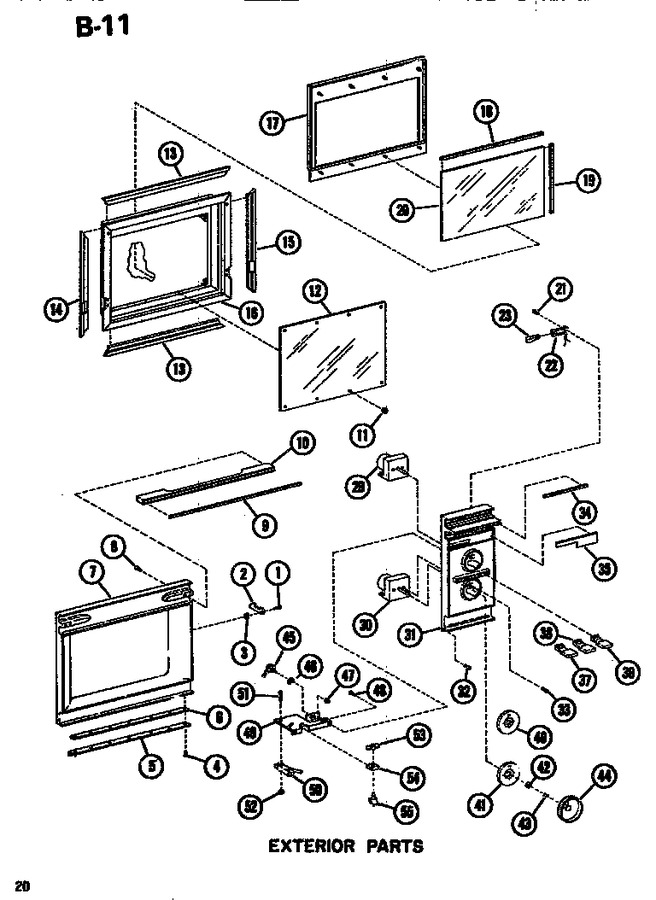

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3183901		Rivet		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	M0287401		Nut		Appelez-nous	-
4	M0227501		Screw		Appelez-nous	-
4	M0214503		Screw		Appelez-nous	-
5	B5603203		Hinge		Appelez-nous	-
6	A3127101		Shim		Appelez-nous	-
6	A3127102		Shim		Appelez-nous	-
7	D7186801		Door Outer		Appelez-nous	-
8	M0234117		Screw		Appelez-nous	-
9	B5604802		Insert-handle		Appelez-nous	-
10	D3964801		Handle		Appelez-nous	-
11	M0288801		Nut K		Appelez-nous	-
12	A3168001		Window Outer A		Appelez-nous	-
13	M0275115		Tape Per Roll		Appelez-nous	-
13	D7141303		Gasket Bottom A		Appelez-nous	-
14	D7141306		Gasket, Door, Left Side		Appelez-nous	-
15	D7141305		Gasket Right A		Appelez-nous	-
16	C3605605		Weldment, Inner Door		Appelez-nous	-
17	D7106401		Molding Inner W		Appelez-nous	-
18	A4591112		Gasket, Inner Window, 13-3/8``		Appelez-nous	-
19	A4591113		Gasket, Inner Window, 8-3/16``		Appelez-nous	-
20	A3167901		Inner Window A-k		Appelez-nous	-
21	M0228015		Screw		Appelez-nous	-
22	B5603103		Socket K		Appelez-nous	-
23	M0360002		Bulb Use M3600-3 K		Appelez-nous	-
29	B5631603		Timer, 6 Minute		Appelez-nous	-
30	B5681901		Timer, 36 Minute		Appelez-nous	-
31	D7186501		Escutcheon, Control		Appelez-nous	-
32	M0229916		Screw T.c		Appelez-nous	-
33	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
34	B5703901		Insert- K		Appelez-nous	-
35	B5673201		Name Plate K		Appelez-nous	-
37	B5631004		Start Button		Appelez-nous	-
38	B5631005		Stop Button		Appelez-nous	-
39	B5631006		Light Button		Appelez-nous	-
40	B5696003		Escut-indicator K		Appelez-nous	-
41	B5696004		Escut. Indicator K		Appelez-nous	-
42	A3206801		Bearing Knob K		Appelez-nous	-
43	M0117001		Clip		Appelez-nous	-
44	D7028701		Knob A		Appelez-nous	-
45	M0340105		Switch		Appelez-nous	-
46	M0281401		Nut A		Appelez-nous	-
47	M0272511		Washer		Appelez-nous	-
48	M0228015		Screw		Appelez-nous	-
49	C3667602		Bracket, Switch Mounting		Appelez-nous	-
50	A3141503		Start Switch, Preform		Appelez-nous	-
51	M0202521		Screw		Appelez-nous	-
52	M0282005		Nut K				$ 7.07
53	A3127701		Cam		Appelez-nous	-
54	A3134301		Bearing Insert		Appelez-nous	-
55	B5631101		Cam,switch		Appelez-nous	-
