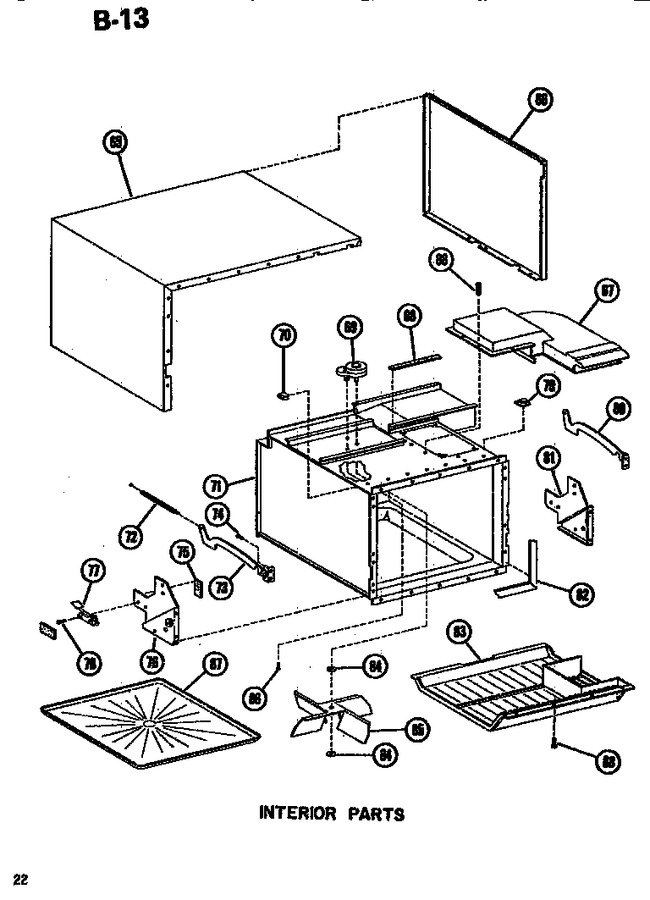

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
65	C3688401		Wrapper, Outer Case		Appelez-nous	-
66	C3689601		Access Panel		Appelez-nous	-
67	D7106003		Duct, Air Discharge		Appelez-nous	-
68	A3030302		Gasket		Appelez-nous	-
69	B5602804		Motor 50 Cy		Appelez-nous	-
70	M0114901		Clip		Appelez-nous	-
71	D7168302		Weldment, Oven		Appelez-nous	-
72	M0775001		Spring		Appelez-nous	-
73	B5693102		Arm, Counterbalance, Left Hand		Appelez-nous	-
74	M0228015		Screw		Appelez-nous	-
75	M0050902		X$x Pad		Appelez-nous	-
76	B5693201		Bracket, Counterbalance, Left		Appelez-nous	-
77	A3162503		Switch, Interlock, Left Hand		Appelez-nous	-
78	M0227525		Screw A-k		Appelez-nous	-
79	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
80	B5693101		Arm, Counterbalance, R.h.		Appelez-nous	-
81	B5693202		Bracket, Counterbalance, Right		Appelez-nous	-
82	C3637201		Gasket		Appelez-nous	-
83	D7106201		Grease Shield		Appelez-nous	-
84	A3109101		Washer		Appelez-nous	-
85	C3609101		Fan Blade, Stirrer		Appelez-nous	-
86	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
87	D7089602		Oven Tray Kit		Appelez-nous	-
88	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
