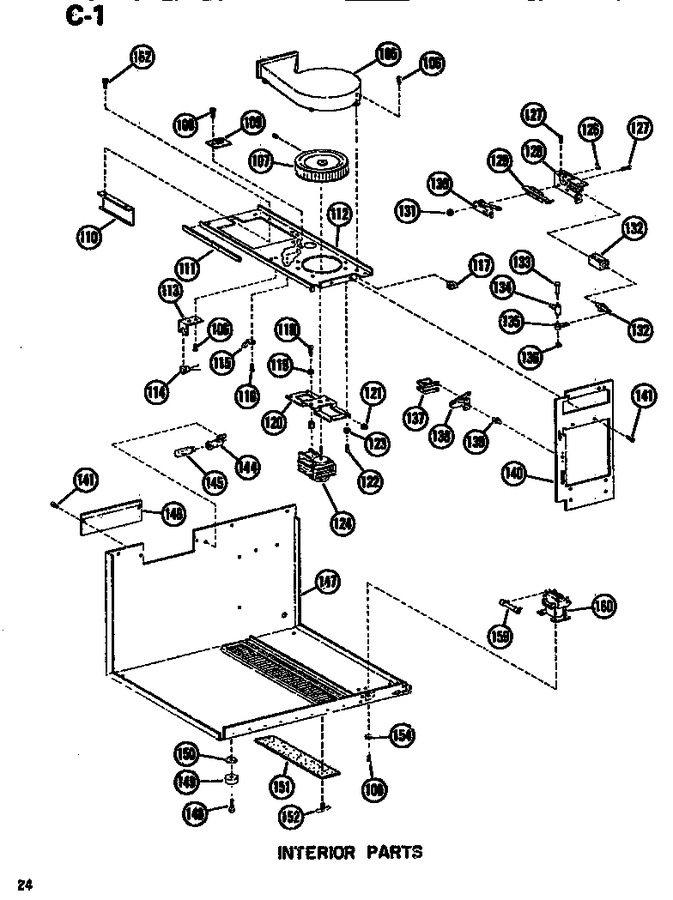

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
105	C3667301		Scroll-blower		Appelez-nous	-
106	M0230015		Screw		Appelez-nous	-
107	B5661101		Ass`y, Blower Wheel		Appelez-nous	-
108	M0216517		Screw		Appelez-nous	-
109	B5607002		Terminal Board		Appelez-nous	-
110	B5691601		Support-magnetron		Appelez-nous	-
111	A3030302		Gasket		Appelez-nous	-
112	D7167801		Bulkhead		Appelez-nous	-
113	B5680301		Bracket-cut Out		Appelez-nous	-
114	B5665803		Thermal Cut-out		Appelez-nous	-
115	M0320901		Terminal		Appelez-nous	-
116	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
117	A4568702		Grommet		Appelez-nous	-
118	M0202642		Screw		Appelez-nous	-
119	M0272605		Washer		Appelez-nous	-
120	B5647301		Motor Mount		Appelez-nous	-
121	A0381401		Eyelet K		Appelez-nous	-
121	YA0381501		Clip, Waterline		Appelez-nous	-
122	M2190018		Screw, Bracket To Bulk Head		Appelez-nous	-
123	M0270504		Washer		Appelez-nous	-
124	C3656502		Motor 50 Cy		Appelez-nous	-
126	M0201414		Screw		Appelez-nous	-
127	M0202521		Screw		Appelez-nous	-
128	C3666902		Bracket, Latch Switch		Appelez-nous	-
129	A3148501		Spring, Latch		Appelez-nous	-
130	A3163405		Switch Preform A		Appelez-nous	-
131	M0282005		Nut K				$ 7.07
132	B5682102		Solenoid-latch		Appelez-nous	-
133	A3182601		Pin Bell-crank		Appelez-nous	-
134	B5672502		Bell Crank		Appelez-nous	-
135	B5672503		Bell Crank		Appelez-nous	-
136	M0270530		Washer		Appelez-nous	-
137	B5685302		Spring-reset Arm		Appelez-nous	-
138	C3667501		Arm-reset		Appelez-nous	-
139	A3183103		Button-reset Arm		Appelez-nous	-
140	B5660202		Front-o C		Appelez-nous	-
141	M0230015		Screw		Appelez-nous	-
144	B5691201		Socket-oven Light		Appelez-nous	-
145	A3167502		Bulb-250 V		Appelez-nous	-
146	A3198102		Panel-bulb Access		Appelez-nous	-
147	C3639907		Weldment, Outer Case Base Pan		Appelez-nous	-
148	M0221132		Screw		Appelez-nous	-
149	M0011001		Foot		Appelez-nous	-
150	M0270519		Washer		Appelez-nous	-
151	A3094901		Filter		Appelez-nous	-
152	M0111203		Clip		Appelez-nous	-
154	M0216532		Screw		Appelez-nous	-
159	M0305007		Resistor, Relay A		Appelez-nous	-
160	C3656302		Relay, Power And Surge		Appelez-nous	-
162	M0216517		Screw		Appelez-nous	-
NI	A0381401		Eyelet K		Appelez-nous	-
