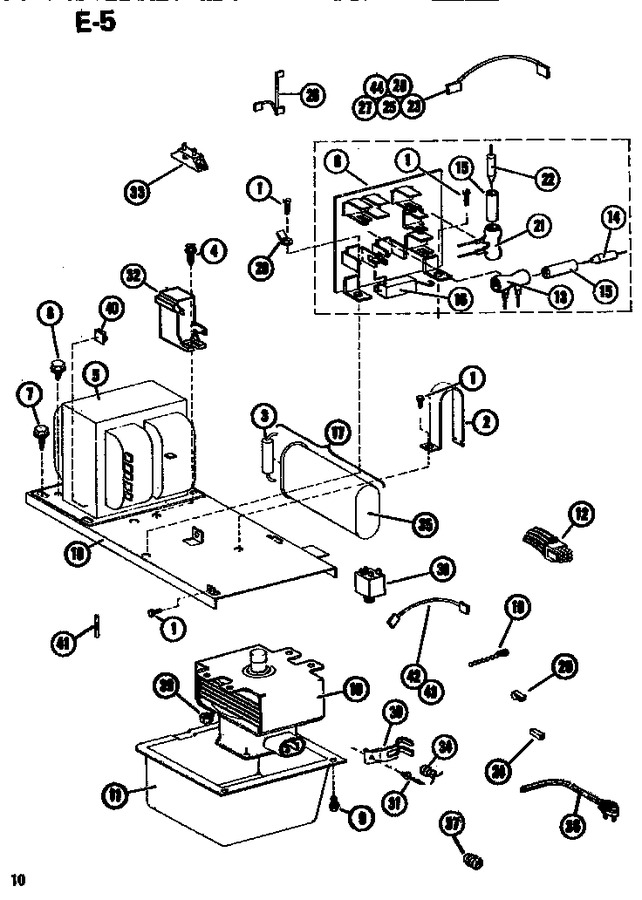

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Electrical
02 - Exterior
03 - Interior
04 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0218116 | Screw |
|
- | |||||
| 2 | A3257001 | Strap-capacitor |
|
- | |||||
| 3 | M0305202 | Resistor A |
|
- | |||||
| 4 | M0216517 | Screw |
|
- | |||||
| 5 | D7310503 | Transformer, Plate |
|
- | |||||
| 6 | B5762201 | Terminal Board |
|
- | |||||
| 7 | YM0258229 | Sems Fastener |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 9 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 10 | C8761701 | Magnetron |
|
- | |||||
| 11 | C8785701 | Cover-magnetron |
|
- | |||||
| 12 | D7320901 | Wiring Harness |
|
- | |||||
| 13 | M0305009 | Resistor A |
|
- | |||||
| 14 | M0308102 | Fuse |
|
- | |||||
| 15 | M0321701 | Sleeve |
|
- | |||||
| 16 | M0305204 | Resistor |
|
- | |||||
| 17 | R0160007 | Capacitor Kit |
|
- | |||||
| 18 | WPW10339879 | Tie K (Replaces: M0321201) |
|
$ 7.11 | |||||
| 19 | D7255502 | Mtg Plate-trans |
|
- | |||||
| 20 | M0320901 | Terminal |
|
- | |||||
| 21 | M0305011 | Resistor, 500 Ohm, 8 Watt |
|
- | |||||
| 22 | M0308106 | Fuse |
|
- | |||||
| 23 | D7292633 | Jumper Wire |
|
- | |||||
| 24 | M0325301 | Insulator, Term. K |
|
- | |||||
| 25 | D7365101 | Jumper Wire |
|
- | |||||
| 26 | D7292617 | Wire, Jumper, Rectifiers Fuse |
|
- | |||||
| 27 | D7292647 | Jumper Wire |
|
- | |||||
| 28 | D7292648 | Jumper Wire K |
|
- | |||||
| 29 | M0325501 | Insulator, Pod K |
|
- | |||||
| 30 | B5725101 | Clip |
|
- | |||||
| 31 | A4539601 | Pop Rivet |
|
- | |||||
| 32 | B5767802 | Kit, Diode |
|
- | |||||
| 33 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 34 | B5665806 | Thermal Cut Out |
|
- | |||||
| 35 | C3679504 | Capacitor Kit |
|
- | |||||
| 36 | B5669001 | Cord, Power |
|
- | |||||
| 37 | A3278802 | Strain Relief |
|
- | |||||
| 38 | B5707601 | Line Filter |
|
- | |||||
| 39 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 40 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 41 | A0304503 | Connector A-k |
|
- | |||||
| 42 | C3655887 | Jumper Wire |
|
- | |||||
| 43 | C3665888 | Wire, Jumper, Brown |
|
- | |||||
| 44 | D7292630 | Wire, Jumper H.v. Capacitor To |
|
- |
