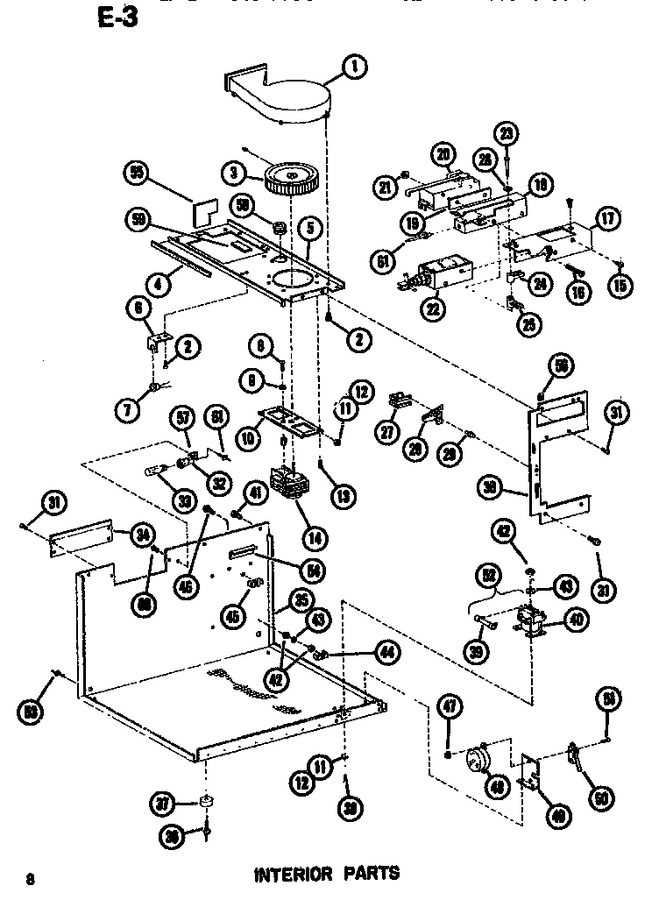

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8785801		Scroll-blower		Appelez-nous	-
2	M0218116		Screw		Appelez-nous	-
3	B5661101		Ass`y, Blower Wheel		Appelez-nous	-
4	A3030302		Gasket		Appelez-nous	-
5	D7323002		Bulkhead		Appelez-nous	-
6	B5680301		Bracket-cut Out		Appelez-nous	-
7	B5665807		Thermal Cut-out		Appelez-nous	-
8	M0202642		Screw		Appelez-nous	-
9	M0272605		Washer		Appelez-nous	-
10	B5744001		Motor Mount-bl		Appelez-nous	-
11	YA0381501		Clip, Waterline		Appelez-nous	-
12	A0381401		Eyelet K		Appelez-nous	-
13	M0216517		Screw		Appelez-nous	-
14	C3656506		Blower Motor		Appelez-nous	-
15	M0201414		Screw		Appelez-nous	-
16	M0202521		Screw		Appelez-nous	-
17	C8782401		Bracket Latch K		Appelez-nous	-
18	B5769001		Latch Spring		Appelez-nous	-
19	A3178601		Insulator Sheet		Appelez-nous	-
20	A3163407		Switch-preform		Appelez-nous	-
21	M0282005		Nut K				$ 7.07
22	B5682104		Solenoid		Appelez-nous	-
23	A3182602		Pin-bell Crank		Appelez-nous	-
24	B5672502		Bell Crank		Appelez-nous	-
25	B5672503		Bell Crank		Appelez-nous	-
26	M0270530		Washer		Appelez-nous	-
27	B5685302		Spring-reset Arm		Appelez-nous	-
28	C3667501		Arm-reset		Appelez-nous	-
29	A3183103		Button-reset Arm		Appelez-nous	-
30	B5660203		Front-o C		Appelez-nous	-
31	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
32	B5764301		Socket-lamp		Appelez-nous	-
33	A3167503		Bulb-250 V		Appelez-nous	-
34	A3198105		Panel-bulb Access		Appelez-nous	-
35	D7256709		Base Pan		Appelez-nous	-
36	A4539619		Pop Rivet		Appelez-nous	-
37	B5732505		Foot		Appelez-nous	-
38	M0216532		Screw		Appelez-nous	-
39	M0305007		Resistor, Relay A		Appelez-nous	-
40	C3656302		Relay, Power And Surge		Appelez-nous	-
41	M0202520		Screw		Appelez-nous	-
42	M0282005		Nut K				$ 7.07
43	M0270524		Washer		Appelez-nous	-
44	A3197701		Washer-u Type		Appelez-nous	-
45	A3259301		Terminal Block		Appelez-nous	-
46	M0227303		Screw		Appelez-nous	-
47	M0282005		Nut K				$ 7.07
48	B5699802		Timer		Appelez-nous	-
49	B5699601		Bracket		Appelez-nous	-
50	A3220701		Switch, Cut-off		Appelez-nous	-
51	M0202521		Screw		Appelez-nous	-
52	R0159007		Relay Assy		Appelez-nous	-
53	A4539615		Rivet-pop		Appelez-nous	-
54	A3276101		Plate-anti Rotation		Appelez-nous	-
55	A3272801		Gasket		Appelez-nous	-
56	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
57	B5772801		Brkt-oven Light		Appelez-nous	-
58	A3258801		Grommet		Appelez-nous	-
59	A3030303		Gasket (per Foot)		Appelez-nous	-
60	M0233204		Screw		Appelez-nous	-
61	A4539609		Pop Rivet		Appelez-nous	-
