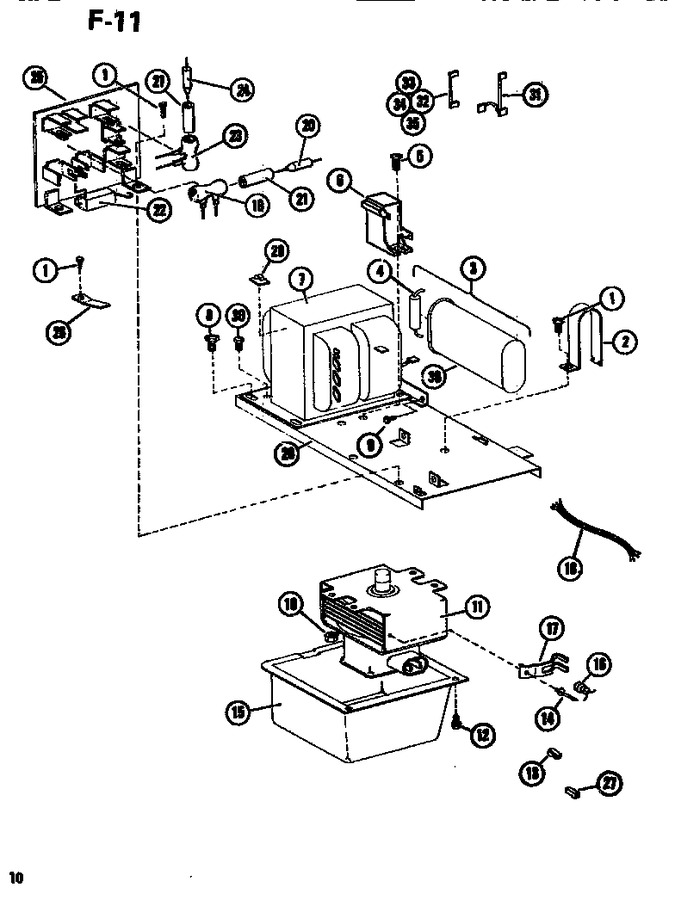

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0218116		Screw		Appelez-nous	-
2	A3257001		Strap-capacitor		Appelez-nous	-
3	R0160007		Capacitor Kit		Appelez-nous	-
4	M0305202		Resistor A		Appelez-nous	-
5	M0216517		Screw		Appelez-nous	-
6	B5767802		Kit, Diode		Appelez-nous	-
7	D7310502		Transformer		Appelez-nous	-
8	YM0258229		Sems Fastener		Appelez-nous	-
9	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
10	WP488130		Nut   (Replaces: M0282007)				$ 6.27
11	C8761701		Magnetron		Appelez-nous	-
12	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
13	M0325501		Insulator, Pod K		Appelez-nous	-
14	A4539601		Pop Rivet		Appelez-nous	-
15	C8785701		Cover-magnetron		Appelez-nous	-
16	B5665806		Thermal Cut Out		Appelez-nous	-
17	B5725101		Clip		Appelez-nous	-
18	D7320801		Wiring Harness		Appelez-nous	-
19	M0305009		Resistor A		Appelez-nous	-
20	M0308102		Fuse		Appelez-nous	-
21	M0321701		Sleeve		Appelez-nous	-
22	M0305204		Resistor		Appelez-nous	-
23	M0305011		Resistor, 500 Ohm, 8 Watt		Appelez-nous	-
24	M0308106		Fuse		Appelez-nous	-
25	B5762201		Terminal Board		Appelez-nous	-
26	M0320901		Terminal		Appelez-nous	-
27	M0325301		Insulator, Term. K		Appelez-nous	-
28	D7255502		Mtg Plate-trans		Appelez-nous	-
29	M0104102		Clip, Cord				$ 8.10
30	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
31	D7292617		Wire, Jumper, Rectifiers Fuse		Appelez-nous	-
32	C3655807		Jumper Wire		Appelez-nous	-
33	D7292618		Jumper Wire		Appelez-nous	-
34	D7292647		Jumper Wire		Appelez-nous	-
35	D7292648		Jumper Wire K		Appelez-nous	-
36	C3679504		Capacitor Kit		Appelez-nous	-
