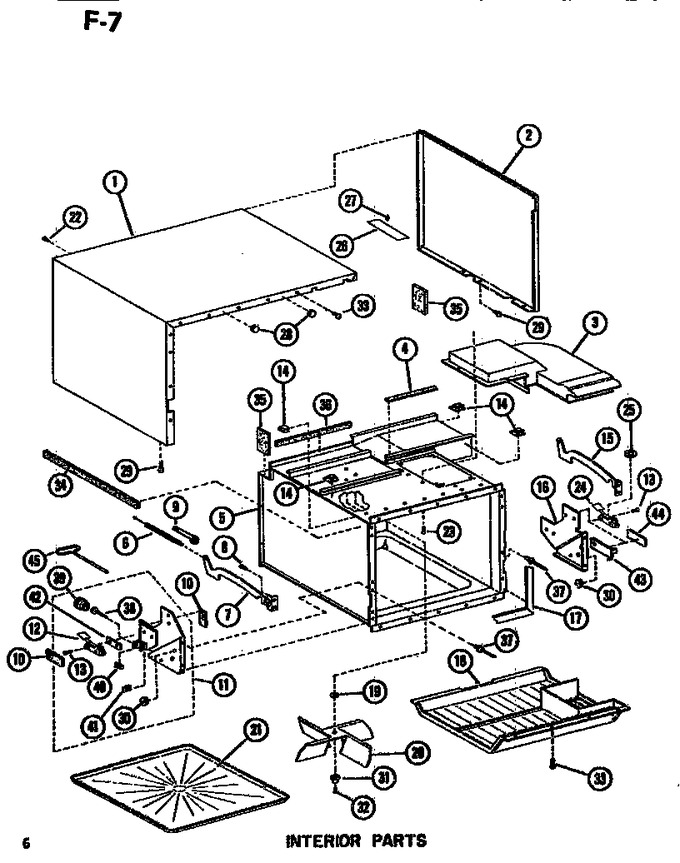

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7257502		Wrapper-oc		Appelez-nous	-
2	D7335801		Access Panel		Appelez-nous	-
3	D7350203		Air Duct		Appelez-nous	-
4	A3030302		Gasket		Appelez-nous	-
5	D7168314		Oven Weld		Appelez-nous	-
6	M0775001		Spring		Appelez-nous	-
7	B5693104		Cb Arm L A		Appelez-nous	-
8	M0258518		Screw		Appelez-nous	-
9	R0193032		Screw Remover				$ 31.92
10	M0050902		X$x Pad		Appelez-nous	-
11	C8783107		Bracket Assy		Appelez-nous	-
12	A3162511		Limit Sw Weld A		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
14	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
15	B5693103		Cb Arm R A		Appelez-nous	-
16	C8783102		Bracket R.h. Assembly With Rol		Appelez-nous	-
17	C3637201		Gasket		Appelez-nous	-
18	D7352601		Grease Shield		Appelez-nous	-
19	B5704203		Bushing-stirrer Mt		Appelez-nous	-
20	C8720801		Xfan Blade-stirrer		Appelez-nous	-
21	D7089602		Oven Tray Kit		Appelez-nous	-
22	M0251002		Screw		Appelez-nous	-
23	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
24	C8736701		Switch Kit		Appelez-nous	-
25	A3145101		Washer K		Appelez-nous	-
26	B5738501		Seal K		Appelez-nous	-
27	M0251017		Screw		Appelez-nous	-
28	A1511502		Bumper		Appelez-nous	-
29	M0216617		Screw		Appelez-nous	-
30	R0157145		Roller Assy Kit		Appelez-nous	-
31	A3214801		Bearing		Appelez-nous	-
32	A3214902		Shoulder Screw		Appelez-nous	-
33	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
34	A3263901		Gasket		Appelez-nous	-
35	B5695301		Gasket		Appelez-nous	-
36	B5695302		Gasket, Air Sealing		Appelez-nous	-
37	A4539601		Pop Rivet		Appelez-nous	-
38	A3277601		Screw Adjusting A-k		Appelez-nous	-
39	A3277801		Guide Screw A-k		Appelez-nous	-
40	A3277701		Spring A		Appelez-nous	-
41	M0286105		Speed Nut		Appelez-nous	-
42	A3178601		Insulator Sheet		Appelez-nous	-
43	B5772101		Brkt-switch Mtg		Appelez-nous	-
44	A3178602		Insulator Sheet		Appelez-nous	-
45	R0193039		Adj Tool-interlock		Appelez-nous	-
