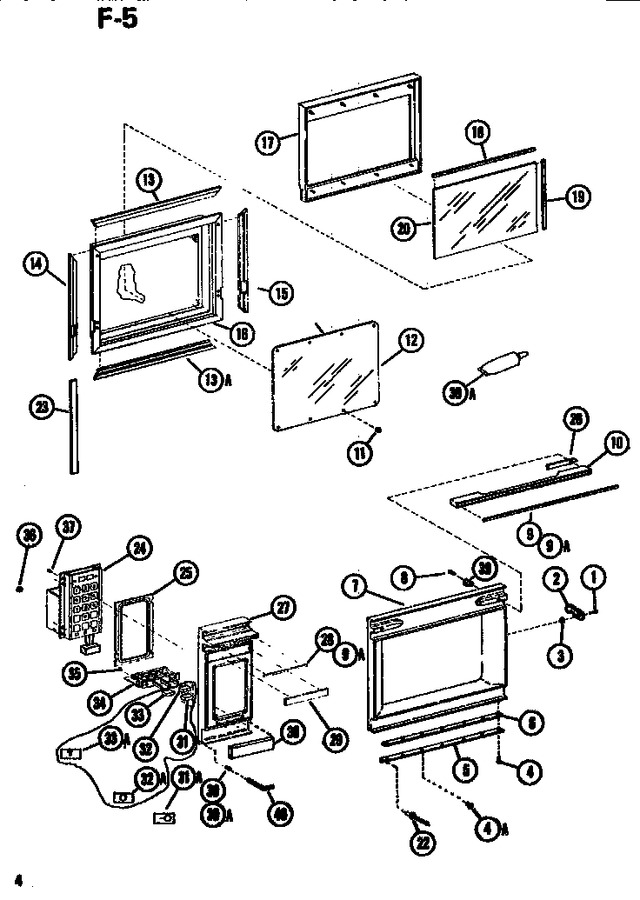

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3183901		Rivet		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	M0287401		Nut		Appelez-nous	-
4	M0214503		Screw		Appelez-nous	-
4	M0227501		Screw		Appelez-nous	-
5	B5603203		Hinge		Appelez-nous	-
6	A3127102		Shim		Appelez-nous	-
6	A3127101		Shim		Appelez-nous	-
7	D7238602		Chrome Outer Door Casting		Appelez-nous	-
8	M0234117		Screw		Appelez-nous	-
9	A0059103		Adhesive Ec-4475		Appelez-nous	-
9	B5604802		Insert-handle		Appelez-nous	-
10	D7275901		Door Handle		Appelez-nous	-
11	M0288801		Nut K		Appelez-nous	-
12	A3254901		Window Outer A		Appelez-nous	-
13	D7320001		Gasket Top A		Appelez-nous	-
13	D7320002		Gasket Bottom A		Appelez-nous	-
14	D7320004		Gasket Left A		Appelez-nous	-
15	D7320003		Gasket Right A		Appelez-nous	-
16	C8755401		Inner Door Assy A		Appelez-nous	-
17	D7240301		Inner Door Mold Assy		Appelez-nous	-
18	A3264601		Gasket Window A-k		Appelez-nous	-
19	A3264602		Gasket Window A-k		Appelez-nous	-
20	A3167901		Inner Window A-k		Appelez-nous	-
22	A4539602		Pop Rivet		Appelez-nous	-
23	M0275140		Tape Per Roll		Appelez-nous	-
24	D7313501		Timer, Digital		Appelez-nous	-
25	C8716001		Gasket-escutcheon		Appelez-nous	-
26	C8744901		Spacer-handle		Appelez-nous	-
27	D7255301		Escutcheon, Control		Appelez-nous	-
28	B5703901		Insert- K		Appelez-nous	-
29	B5770101		Nameplate		Appelez-nous	-
30	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
30	M0229916		Screw T.c		Appelez-nous	-
31	A3278302		Insert		Appelez-nous	-
31	C8743102		Button (stop) K		Appelez-nous	-
32	A3278303		Insert		Appelez-nous	-
32	C8743103		Button (light)		Appelez-nous	-
33	A3278301		Insert		Appelez-nous	-
33	C8743101		Button (start) K		Appelez-nous	-
34	C8742803		Switch Assy		Appelez-nous	-
35	M0234003		Screw		Appelez-nous	-
36	M0282005		Nut K				$ 7.07
37	M0234016		Screw		Appelez-nous	-
37	M0272503		Washer		Appelez-nous	-
38	B5741301		Nameplate K		Appelez-nous	-
39	M0275501		Sealer		Appelez-nous	-
39	B5745802		Bushing		Appelez-nous	-
40	A4696103		Wrench-hex		Appelez-nous	-
