SELECT A DIAGRAM

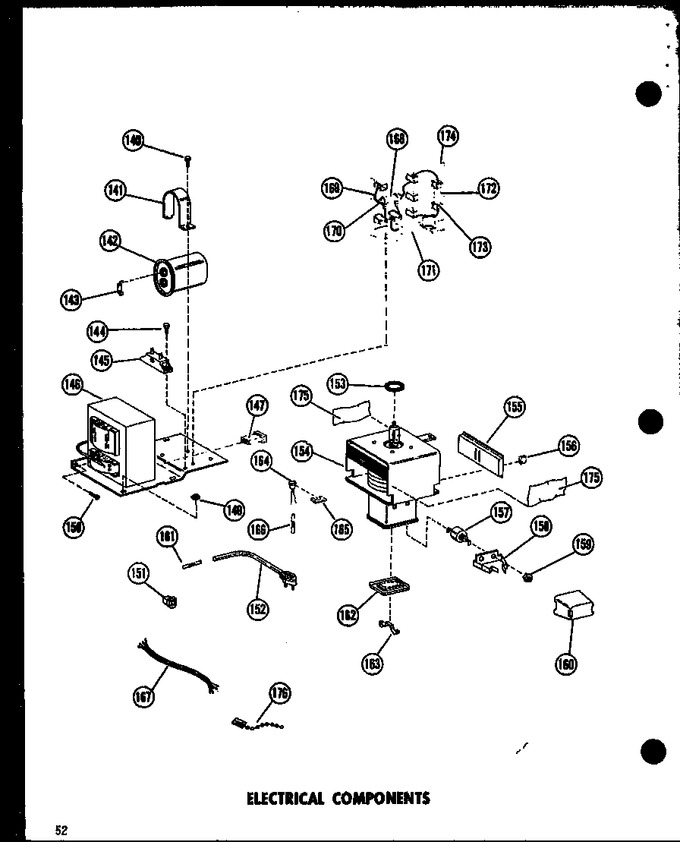

01 - Electrical Components


02 - Exterior Parts


03 - Interior Parts


04 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
140	M0218116		Screw		Appelez-nous	-
141	A3197101		Strap-capacitor A		Appelez-nous	-
142	R0160002		Capacitor Assy		Appelez-nous	-
143	M0305202		Resistor A		Appelez-nous	-
144	M0216517		Screw		Appelez-nous	-
145	11QBP0235		Kit, Diode   (Replaces: B5685801)				$ 15.33
146	D7152101		Transformer		Appelez-nous	-
147	M0325301		Insulator, Term. K		Appelez-nous	-
149	WP487939		Nut   (Replaces: M0282015)				$ 6.95
150	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
151	M0370001		Strain Relief		Appelez-nous	-
152	B5703503		Power Cord		Appelez-nous	-
153	A3185102		Gasket, Magnetron		Appelez-nous	-
154	D7157002		Magnetron Kit,700w		Appelez-nous	-
155	B5679101		Baffle		Appelez-nous	-
156	M0113504		Clip K		Appelez-nous	-
157	A3148801		Capacitor K		Appelez-nous	-
158	B5655902		Clip K		Appelez-nous	-
159	M0281901		Hex Nut		Appelez-nous	-
160	B5656001		Shield Hv K		Appelez-nous	-
161	WP75614		Connector A-k   (Replaces: A0304502)				$ 44.41
162	B5647901		Cover Cap Box K		Appelez-nous	-
163	A3145401		Bale Strap K		Appelez-nous	-
164	M0370403		Thermal Prot		Appelez-nous	-
165	M0115802		Clip		Appelez-nous	-
166	A0304501		Connector A-k		Appelez-nous	-
167	D7230601		Wiring Harness		Appelez-nous	-
168	M0305009		Resistor A		Appelez-nous	-
169	M0308102		Fuse		Appelez-nous	-
170	M0321701		Sleeve		Appelez-nous	-
171	M0305204		Resistor		Appelez-nous	-
172	M0305402		Resistor Fuse Kit		Appelez-nous	-
173	M0308101		Fuse				$ 9.87
174	B5730901		Terminal Board		Appelez-nous	-
175	M0275023		Tape,alum Per Roll		Appelez-nous	-
176	WPW10339879		Tie K   (Replaces: M0321201)				$ 7.11
NI	C3655807		Jumper Wire		Appelez-nous	-
NI	C3655835		Jumper Wire K		Appelez-nous	-
NI	C3655809		Jumper Wire		Appelez-nous	-
NI	C3655870		Wire, Jumper, Diode, Fuse Asse		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
