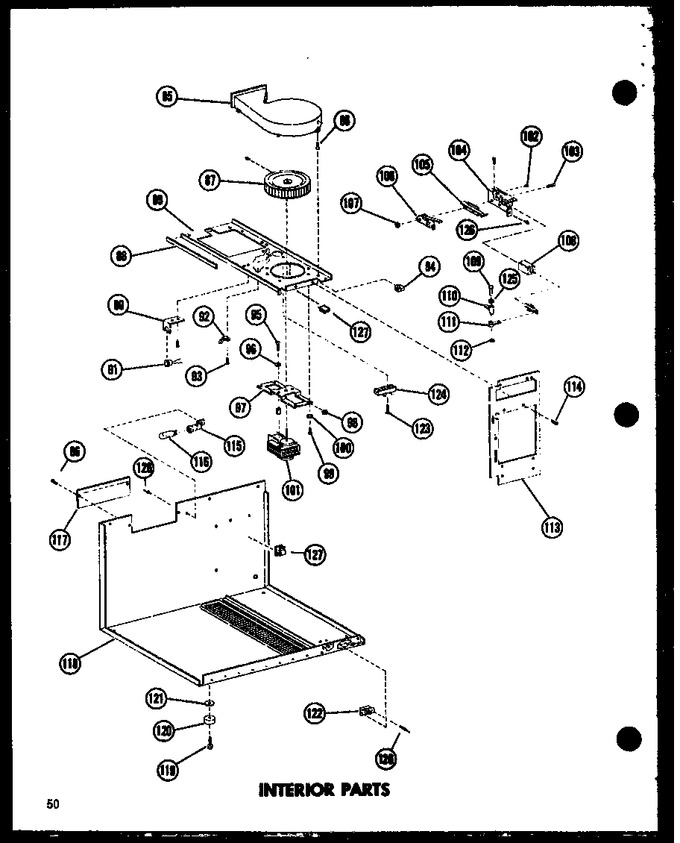

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 85 | C3667301 | Scroll-blower |
|
- | |||||
| 86 | M0230015 | Screw |
|
- | |||||
| 87 | B5661101 | Ass`y, Blower Wheel |
|
- | |||||
| 88 | A3030302 | Gasket |
|
- | |||||
| 89 | D7167801 | Bulkhead |
|
- | |||||
| 90 | B5680301 | Bracket-cut Out |
|
- | |||||
| 91 | B5665803 | Thermal Cut-out |
|
- | |||||
| 92 | M0320901 | Terminal |
|
- | |||||
| 93 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 94 | A4568702 | Grommet |
|
- | |||||
| 95 | M0202642 | Screw |
|
- | |||||
| 96 | M0272605 | Washer |
|
- | |||||
| 97 | B5647301 | Motor Mount |
|
- | |||||
| 98 | YA0381501 | Clip, Waterline |
|
- | |||||
| 98 | A0381401 | Eyelet K |
|
- | |||||
| 99 | M0216517 | Screw |
|
- | |||||
| 100 | M0270504 | Washer |
|
- | |||||
| 101 | C3656501 | Motor |
|
- | |||||
| 102 | M0201414 | Screw |
|
- | |||||
| 103 | M0230015 | Screw |
|
- | |||||
| 104 | C8712101 | Bracket, Latch Switch |
|
- | |||||
| 105 | B5719601 | Spring, Latch |
|
- | |||||
| 106 | A3163405 | Switch Preform A |
|
- | |||||
| 107 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 108 | B5682101 | Solenoid |
|
- | |||||
| 109 | A3182602 | Pin-bell Crank |
|
- | |||||
| 110 | B5672502 | Bell Crank |
|
- | |||||
| 111 | B5672503 | Bell Crank |
|
- | |||||
| 112 | M0270530 | Washer |
|
- | |||||
| 113 | D7215501 | Oc Front |
|
- | |||||
| 114 | M0230015 | Screw |
|
- | |||||
| 115 | B5691203 | Socket |
|
- | |||||
| 116 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 117 | A3198101 | Panel-bulb Access |
|
- | |||||
| 118 | C3639910 | Base Pan Wld |
|
- | |||||
| 119 | M0221132 | Screw |
|
- | |||||
| 120 | M0011001 | Foot |
|
- | |||||
| 121 | M0270519 | Washer |
|
- | |||||
| 122 | A3116201 | Switch |
|
- | |||||
| 123 | M0216617 | Screw |
|
- | |||||
| 124 | B5677202 | Terminal Block |
|
- | |||||
| 125 | M0270530 | Washer |
|
- | |||||
| 126 | A4539601 | Pop Rivet |
|
- | |||||
| 127 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| NI | C3655853 | Ground Wire Motor |
|
- |
