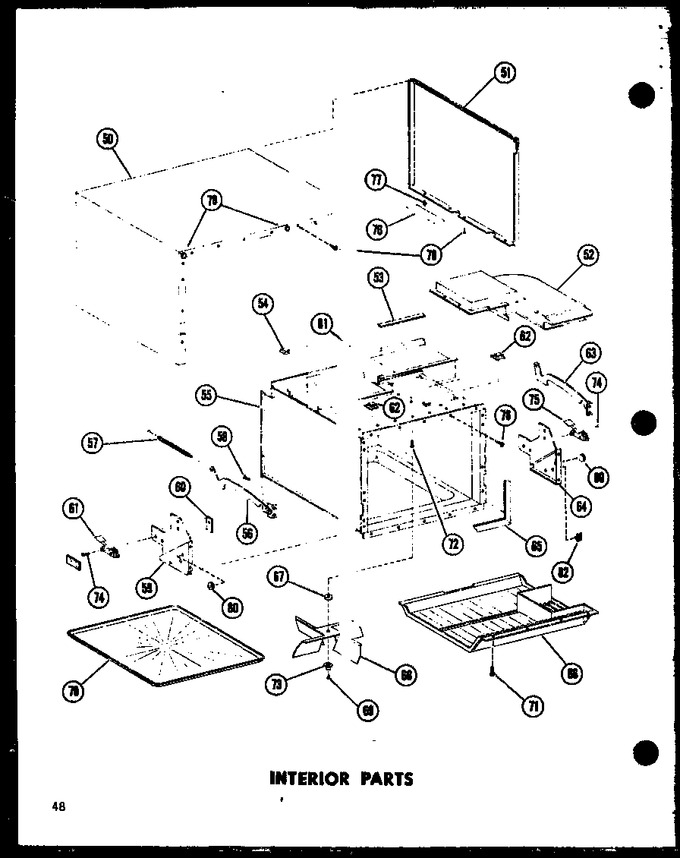

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	C3688401		Wrapper, Outer Case		Appelez-nous	-
51	C3689601		Access Panel		Appelez-nous	-
52	D7106003		Duct, Air Discharge		Appelez-nous	-
53	A3030302		Gasket		Appelez-nous	-
54	M0114901		Clip		Appelez-nous	-
55	D7168306		Weldment, Oven		Appelez-nous	-
56	B5693102		Arm, Counterbalance, Left Hand		Appelez-nous	-
57	M0775001		Spring		Appelez-nous	-
58	M0228015		Screw		Appelez-nous	-
59	B5693205		Bracket, Counterbalance, Left		Appelez-nous	-
60	M0050902		X$x Pad		Appelez-nous	-
61	A3162507		Weld Switch		Appelez-nous	-
62	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
63	B5693101		Arm, Counterbalance, R.h.		Appelez-nous	-
64	B5693206		Bracket, Counterbalance, Right		Appelez-nous	-
65	C3637201		Gasket		Appelez-nous	-
66	D7106201		Grease Shield		Appelez-nous	-
67	B5704203		Bushing-stirrer Mt		Appelez-nous	-
68	C8720801		Xfan Blade-stirrer		Appelez-nous	-
69	A3214902		Shoulder Screw		Appelez-nous	-
70	D7089602		Oven Tray Kit		Appelez-nous	-
71	M0230015		Screw		Appelez-nous	-
72	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
73	A3214801		Bearing		Appelez-nous	-
74	M0227525		Screw A-k		Appelez-nous	-
75	C8736701		Switch Kit		Appelez-nous	-
75	A3145101		Washer K		Appelez-nous	-
76	B5738501		Seal K		Appelez-nous	-
77	A4539601		Pop Rivet		Appelez-nous	-
78	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
79	A1511502		Bumper		Appelez-nous	-
80	R0157145		Roller Assy Kit		Appelez-nous	-
81	M0282005		Nut K				$ 7.07
82	B5667301		Clip,wire		Appelez-nous	-
NI	A3030333		Gasket (1=1ft.)		Appelez-nous	-
NI	B5695302		Gasket, Air Sealing		Appelez-nous	-
NI	B5695301		Gasket		Appelez-nous	-
