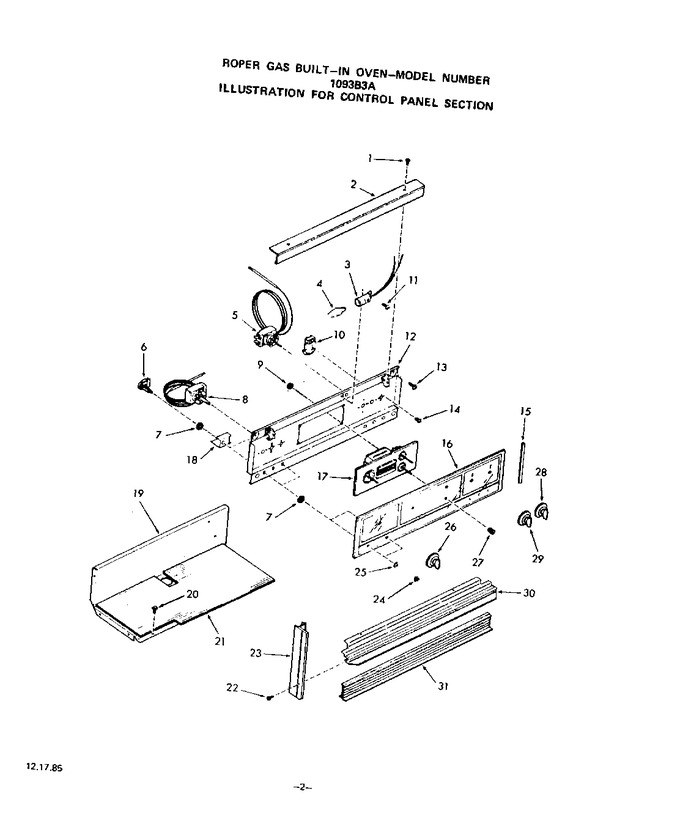

SELECT A DIAGRAM

02 - Optional


03 - Control Panel


04 - Body


05 - Burner, Literature


06 - Full Glass Upper Oven And Lower Broiler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327621		Screw 6-32x3/8``		Appelez-nous	-
2	300195		Lamp Shade		Appelez-nous	-
3	327357		Holder-lamp Bulb		Appelez-nous	-
4	99035		Lamp Bulb		Appelez-nous	-
5	306473		Thermostat-upper Oven		Appelez-nous	-
6	298794		Puch Switch-oven Or Panel Light		Appelez-nous	-
7	236129		Pal Nut		Appelez-nous	-
8	303004		Thermostat-lower Oven		Appelez-nous	-
9	74056		Keps Nut 10-24		Appelez-nous	-
10	278089		Selector Switch		Appelez-nous	-
11	97220		Screw 6-32x1/4``		Appelez-nous	-
12	328300		Mounting Panel-controls		Appelez-nous	-
13	105667		Screw 6-32x3/8``		Appelez-nous	-
14	78565		Screw 8-32x3/16``		Appelez-nous	-
15	239565		End Trim-control Panel Glass (rt Or Lt)		Appelez-nous	-
16	325469		Control Panel Glass		Appelez-nous	-
17	319456		Clock W/1hr Timer		Appelez-nous	-
18	291351		Shield-switch (2 Req)		Appelez-nous	-
19	326556		Baffle-control Panel		Appelez-nous	-
20	286628		Screw 6-32x1/2``		Appelez-nous	-
21	326555		Corrugated Insulation		Appelez-nous	-
22	299766		Screw 6-32 X 1/2``		Appelez-nous	-
23	328315		Side Trim-control Panel (left)		Appelez-nous	-
23	328316		Side Trim-control Panel (right)		Appelez-nous	-
24	87403		Knurled Nut (2 Req)		Appelez-nous	-
25	104838		Washer (2 Req)		Appelez-nous	-
26	308057		Knob-lower Oven Thermostat				$ 13.19
27	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
28	308053		Knob-selector Switch		Appelez-nous	-
29	308054		Knob-upper Oven Thermostat		Appelez-nous	-
30	324294		Trim-control Panel		Appelez-nous	-
31	324292		Trin Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
