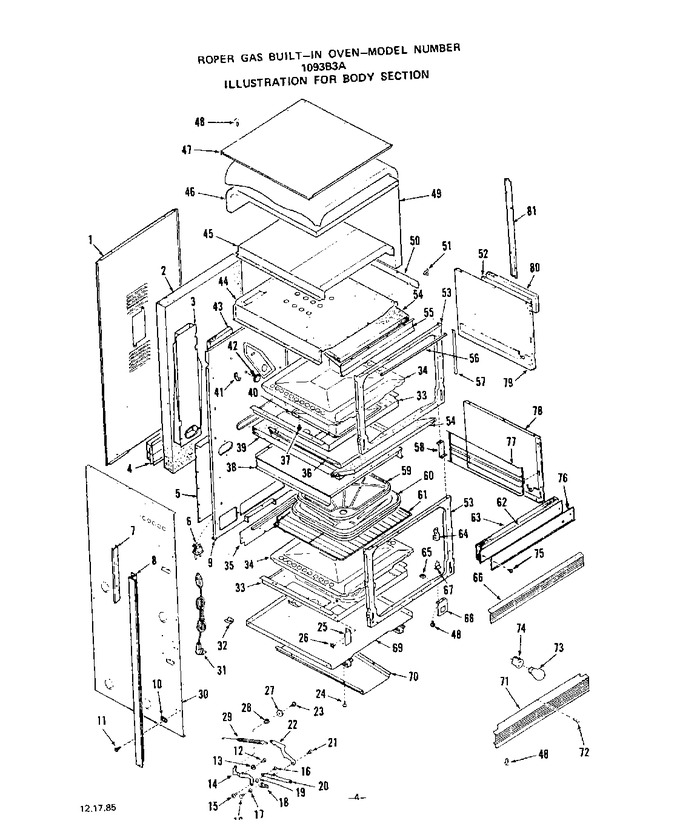

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 323788 | Wire Cover |
|
- | |||||
| 2 | 279524 | Insulation-oven Back |
|
- | |||||
| 3 | 323779 | Vent Box |
|
- | |||||
| 4 | 323760 | Air Chamber Cover |
|
- | |||||
| 5 | WP4391960 | Cover-air Box (Replaces: 279478) |
|
Immediately | $ 54.50 | ||||
| 6 | 232150 | Disconnect |
|
- | |||||
| 7 | 315233 | Channel Trim - Lt. Or Rt. |
|
- | |||||
| 8 | 328311 | Side Trim-front Frame (left) |
|
- | |||||
| 8 | 328312 | Side Trim-front Frame (right) |
|
- | |||||
| 9 | 332378 | Oven Back |
|
- | |||||
| 10 | 302862 | Spacer-side Trim (4 Req) |
|
- | |||||
| 11 | 281160 | Accordian Rivet |
|
- | |||||
| 12 | 104735 | Shoulder Rivet |
|
- | |||||
| 13 | 104734 | Roller |
|
- | |||||
| 14 | 324036 | Oven Door Hinge W/rivet, Sleeve & Washer (left (up. Or Lo. Oven)) |
|
- | |||||
| 14 | 324037 | Oven Door Hinge W/rivet, Sleeve & Washer (right (up. Or Lo. Oven)) |
|
- | |||||
| 15 | 97717 | Hinge Pivot Sleeve |
|
- | |||||
| 16 | 97748 | Rivet |
|
- | |||||
| 17 | 103208 | Washer |
|
- | |||||
| 20 | 324038 | Oven Door Arm W/rivet, Sleeve & Washer (right (up Or Lo Oven)) |
|
- | |||||
| 20 | 324039 | Oven Door Arm W/rivet, Sleeve & Washer (left (up Or Lo Oven)) |
|
- | |||||
| 21 | 104629 | Hinge Pivot Sleeve |
|
- | |||||
| 22 | 323454 | Spring Link |
|
- | |||||
| 23 | 288881 | Bolt 1/4-20x3/8`` |
|
- | |||||
| 24 | 71269 | Screw 10ax3/8`` |
|
- | |||||
| 25 | 327985 | Insulation Shield (2 Req) |
|
- | |||||
| 26 | 70588 | Clip |
|
- | |||||
| 27 | 323451 | Washer |
|
- | |||||
| 28 | 69459 | Lockwasher |
|
- | |||||
| 29 | 286547 | Oven Door Spring (up Or Lo Oven) |
|
- | |||||
| 30 | 323786 | Body Side (right) |
|
- | |||||
| 30 | 323785 | Body Side (left) |
|
- | |||||
| 31 | 232132 | Service Cord |
|
- | |||||
| 32 | 97047 | Clip (for Key31) |
|
- | |||||
| 33 | 323750 | Burner Box |
|
- | |||||
| 34 | 332488 | Oven Bottom W/baffle |
|
- | |||||
| 35 | 323766 | Cover Plate-lower Oven |
|
- | |||||
| 36 | 323774 | Insulation Retainer |
|
- | |||||
| 37 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 38 | 332377 | Oven Top-lower Oven |
|
- | |||||
| 39 | 279468 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 40 | 281418 | Baffle-oven Bottom |
|
- | |||||
| 41 | 115533 | Thermostat Bulb Clip (4 Req) |
|
- | |||||
| 42 | 98230 | Plug Bottom |
|
$ 257.43 | |||||
| 43 | 279544 | Insulation |
|
- | |||||
| 44 | 313315 | Oven Top-upper Oven |
|
- | |||||
| 45 | 331852 | Vent Box |
|
- | |||||
| 46 | 313321 | Insulation-oven Top & Back (1 Piece) |
|
- | |||||
| 47 | 323762 | Oven Cabinet Top |
|
- | |||||
| 48 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 49 | 313324 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 50 | 331855 | Raceway-inner Capillary |
|
- | |||||
| 51 | 70588 | Clip |
|
- | |||||
| 52 | 286448 | Insulation |
|
- | |||||
| 53 | 332482 | Frt Frame W/rivet, Sleeve & Washer |
|
- | |||||
| 54 | 97324 | Insulation |
|
- | |||||
| 55 | 331848 | Skirt-broiler Burner |
|
- | |||||
| 56 | 315944 | Seal-top & Bottom (4 Req) |
|
- | |||||
| 57 | 315994 | Seal-sides (4 Req) |
|
- | |||||
| 58 | 279476 | Support Bracket (2 Req) |
|
- | |||||
| 59 | 331851 | Broiler Pan Grid |
|
- | |||||
| 60 | 331850 | Broiler Pan |
|
- | |||||
| 61 | 279539 | Oven Rack (3 Req) |
|
- | |||||
| 62 | 303382 | Insulation-center Trim |
|
- | |||||
| 63 | 306481 | Insulation-center Trim |
|
- | |||||
| 64 | 327977 | Door Spring Bracket (4 Req) |
|
- | |||||
| 65 | 108069 | Speed Nut 10 - 32 |
|
- | |||||
| 66 | 313802 | Center Trim-front Frame |
|
- | |||||
| 67 | 323446 | Supprot Hinge (4 Req) |
|
- | |||||
| 68 | 327982 | Bracket-frame Support (2 Req) |
|
- | |||||
| 69 | 327965 | Main Bottom |
|
- | |||||
| 70 | 279264 | Air Channel Box |
|
Immediately | $ 67.07 | ||||
| 71 | 313805 | Lower Trim-front Frame |
|
- | |||||
| 72 | 97221 | Screw 6-32x5/16`` |
|
- | |||||
| 73 | DA96-01243C | Lamp Bulb-40 W (up. & Lo. Oven) (Replaces: 111257) |
|
$ 144.00 | |||||
| 74 | 87883 | Oven Lamp Holder (up. & Lo. Oven) |
|
- | |||||
| 75 | 105667 | Screw 6-32x3/8`` |
|
- | |||||
| 76 | 303383 | Shield-burner Box |
|
- | |||||
| 77 | 279538 | Oven Rack Guide-up. & Lo. Oven (right) |
|
- | |||||
| 77 | 279537 | Oven Rack Guide-up. & Lo. Oven (left) |
|
- | |||||
| 78 | 279537 | Oven Side-lower Oven (left) |
|
- | |||||
| 78 | 331859 | Oven Side-lower Oven (right) |
|
- | |||||
| 80 | 279470 | Insulation-oven Door Spring (4 Req) |
|
- | |||||
| 81 | 323619 | Raceway-outer Capillary |
|
- |
