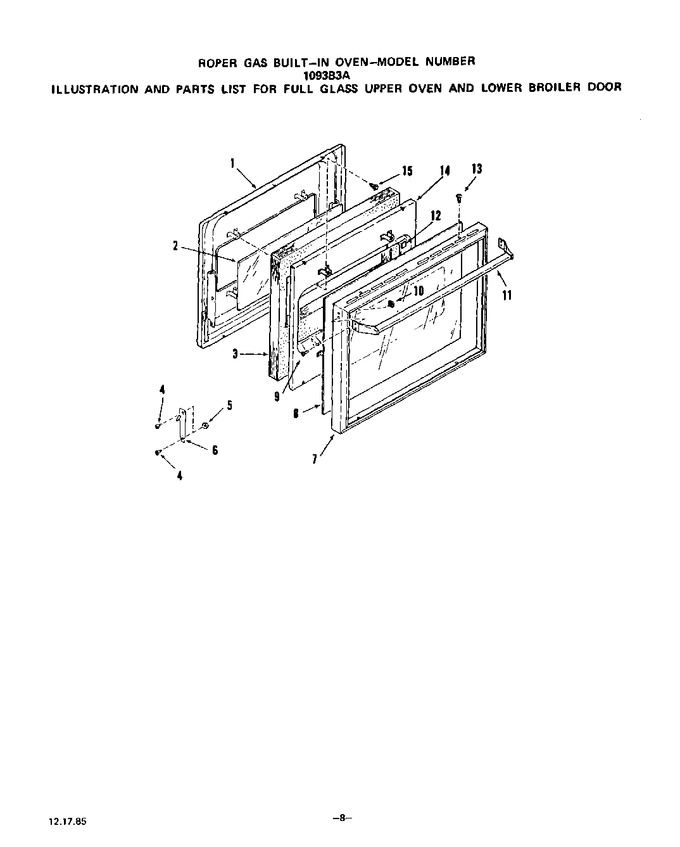

06 - Full Glass Upper Oven And Lower Broiler


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	331853		Door Lining - Upper Or Lower Door		Appelez-nous	-
2	111887		Door Glass-inner				$ 12.84
3	299782		Insulation - Upper Or Lower Door		Appelez-nous	-
4	97709		Shoulder Bolt (4 Required)		Appelez-nous	-
5	97816		Hex Nut 10-32		Appelez-nous	-
6	325203		Hinge Arm Guide (left)		Appelez-nous	-
6	325201		Hinge Arm Guide (right)		Appelez-nous	-
7	325757		Door Frame - Upper Or Lower Door		Appelez-nous	-
8	322093		Door Glass - Outer - Upper Or Lower Door		Appelez-nous	-
9	319447		Screw 8-32 X 1/2``		Appelez-nous	-
10	239764		Keps Nut 8-32		Appelez-nous	-
11	318940		Door Handle		Appelez-nous	-
12	299314		Spacer (4 Req.)		Appelez-nous	-
13	327621		Screw 6-20x3/8``		Appelez-nous	-
14	322096		Insulation Retainer - Upper Or Lower Door		Appelez-nous	-
15	104520		Screw 10-32 X 17/32``		Appelez-nous	-
