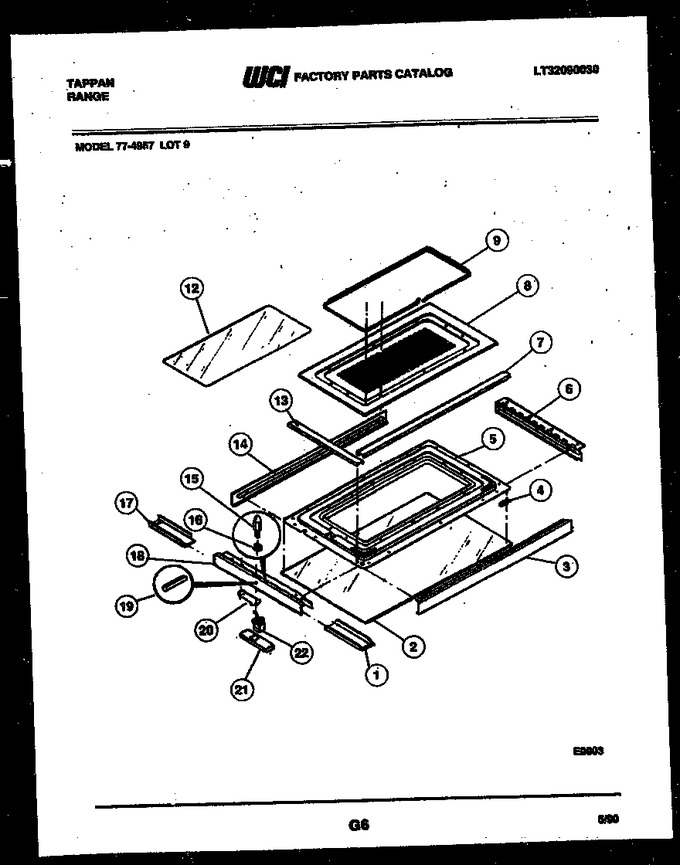

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 322T016P02 | Insert-dr Bottom |
|
- | |||||
| 2 | 5303091382 | Glass-outer Door |
|
- | |||||
| 3 | 5308010438 | Extrusion-btm |
|
- | |||||
| 4 | 5308010437 | Spacer 3/4 X 3/4 X 4`` (4) Foam |
|
- | |||||
| 5 | 5308010436 | Frame-door |
|
- | |||||
| 6 | 233T026S13 | Extrusn Hng Mtg Assy |
|
- | |||||
| 7 | 5308010433 | Seal-dr Top & Btm |
|
- | |||||
| 8 | 5303200605 | Panel-dr Seal Almond |
|
- | |||||
| 9 | 707R001P01 | Tape Seal 45`` If Equipped |
|
- | |||||
| 12 | 5308010431 | Liner - Door Seal |
|
- | |||||
| 13 | 5308010434 | Seal-door Side |
|
- | |||||
| 14 | 5308010439 | Extrusion Top |
|
- | |||||
| 15 | 5308010447 | Screw-dr Strike Hex |
|
- | |||||
| 16 | 08009182 | Nut-hex 6-32 Specl |
|
- | |||||
| 17 | 5308012077 | Insert-top |
|
- | |||||
| 18 | 5308010441 | Extrusion-right |
|
- | |||||
| 19 | 08010446 | Pin Roll |
|
- | |||||
| 20 | 5308010445 | Spring-door Handle |
|
- | |||||
| 21 | 5303934045 | Kit-handle |
|
- | |||||
| 22 | 5303207361 | Hook Handle |
|
- | |||||
| *39066 | 5308011737 | Handle Assy-compl W/item 21 & 22 |
|
- | |||||
| *39066 | 5303013874 | Screw-door Assy (22) |
|
$ 5.04 |
