Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303204035 Magnetron Appelez-nous -
2 5308012862 Switch-thermo Cutout Mag Appelez-nous -
3 5303200606 Fuse 20 Amp. Appelez-nous -
4 5308012055 Socket-fuse Appelez-nous -
5 5303011668 Fan Blade-trans Former Appelez-nous -
6 5303011677 Motor - Fan Appelez-nous -
7 618T048P01 Rod Fan Mtr Supt Appelez-nous -
8 5303207945 Channl-mtg Guide Appelez-nous -
9 5303091303 Diode-hi Voltage Appelez-nous -
10 5303161116 Terminal Block Appelez-nous -
11 5308014096 Transformer-high Voltage Appelez-nous -
12 5303013944 Screw-transformer Mtg (4) Appelez-nous -
13 08010483 Retainer - Capacitor Appelez-nous -
14 08010484 Shield-capac Term Appelez-nous -
15 5308037624 Capac-hi Voltage Non-pcb Appelez-nous -
16 5308010486 Transformer-lo Volt Appelez-nous -
17 5303912591 Kit-interlock Sw Appelez-nous -
18 12QBP0508 Triac Heat Sink Assy   (Replaces: 5303912602) Special Order $ 27.14

19 5308008971 Screw (2) Appelez-nous -
19 3200767 Screw Appelez-nous -
20 554T338F02 Plate, Heat Sink Appelez-nous -
21 08009182 Nut-hex 6-32 Special (2) Appelez-nous -
22 12QBP0508 Triac   (Replaces: 5303912602) Special Order $ 27.14

23 5303091100 Screw-triac Heat Sink To Air Baffle Angle 8a X 1/2`` (2) Appelez-nous -
*39068 636T069P02 Screw Term Blk. Mt. (2) Appelez-nous -
*39068 5308010494 Harness-diode Assy Appelez-nous -
*39068 5308037894 Harness-main Appelez-nous -
*39069 08037895 Harness Control Appelez-nous -
10A 08067783 Nut-hex Brass 10 X 32 (4) (non-illustrated) Appelez-nous -
17A 636T095P16 Screw Interlk Sw (6) (non-illustrated) Appelez-nous -
1A 5308008918 Nut-hex 5 Millim (non-illustrated) Appelez-nous -
2A 5308008925 Screw-thermo Cutout Sw (non-illustrated) Appelez-nous -
6A 5303091100 Screw-mtr Mtg (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

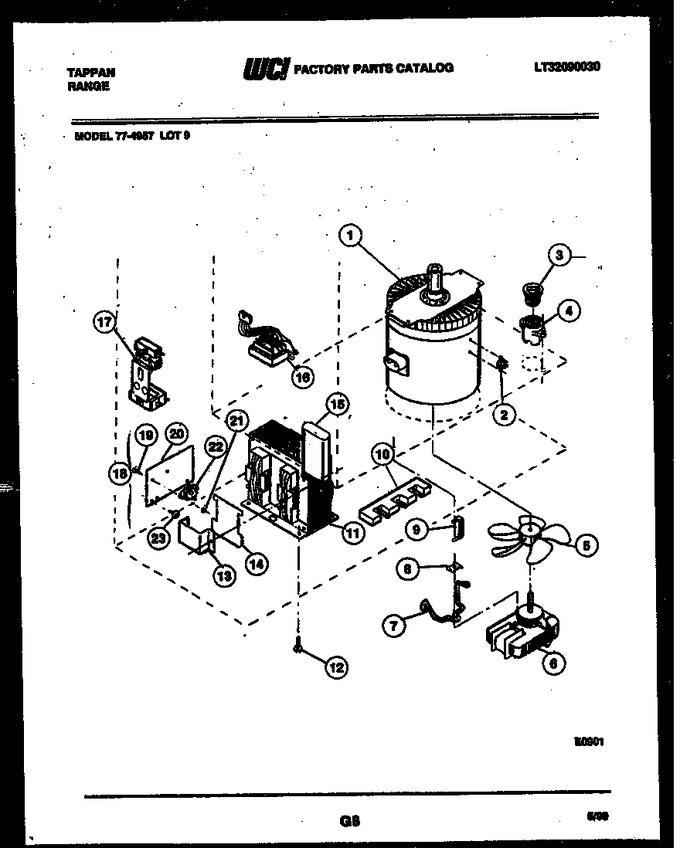

Diagram for 77-4957-00-09
