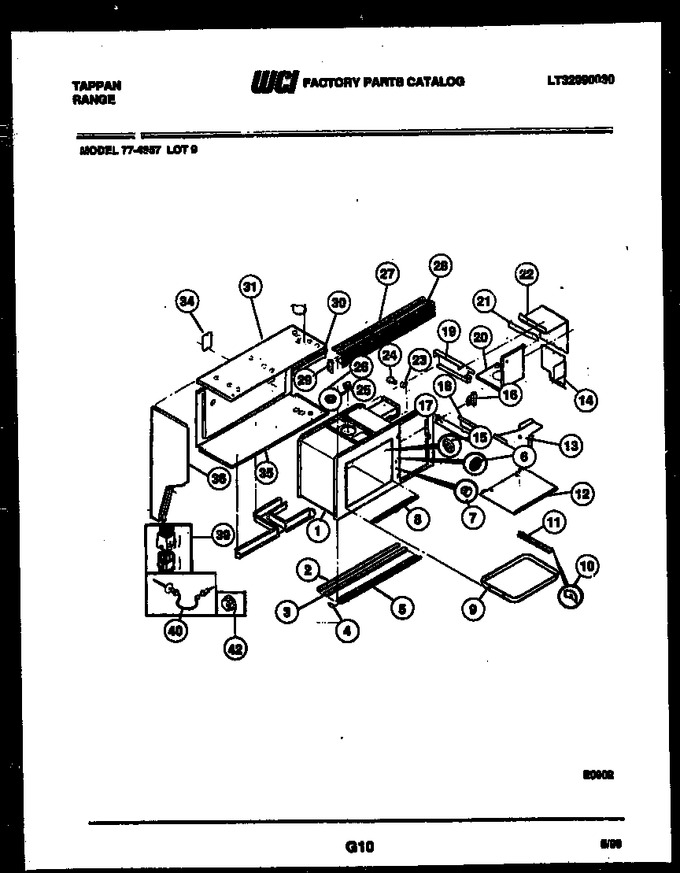

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303207965 | Seal-micro (2) |
|
- | |||||
| 3 | 5303200597 | Cover-micro Seal (2) |
|
- | |||||
| 4 | 5308010510 | Cap End-lwr Trim (2) |
|
- | |||||
| 5 | 5303208200 | Trim-vent Btm |
|
- | |||||
| 6 | 5308010512 | Medallion-dr Strike |
|
- | |||||
| 7 | 5308010513 | Grommet-dr Strike |
|
- | |||||
| 8 | 5303200630 | Trim - Front Main |
|
- | |||||
| 9 | 5308010514 | Tray-oven |
|
- | |||||
| 10 | 5308010515 | Fastnr-tray Glide |
|
- | |||||
| 11 | 5303200607 | Glide - Tray |
|
- | |||||
| 12 | 5303200598 | Cover, Stirrer |
|
- | |||||
| 13 | 5308010520 | Fan - Stirrer |
|
- | |||||
| 14 | 174T267P01 | Cover Duct Btm Extension |
|
- | |||||
| 15 | 5303013283 | Nut-recept Mtg |
|
- | |||||
| 16 | 5308008972 | Receptacle Probe |
|
- | |||||
| 17 | 08010521 | Angle - Air Baffle |
|
- | |||||
| 18 | 5308010522 | Angle - Air Baffle |
|
- | |||||
| 19 | 08010523 | Channl Air |
|
- | |||||
| 20 | 08010524 | Duct - Bottom |
|
- | |||||
| 21 | 5308010526 | Brackt-magnetron Support |
|
- | |||||
| 22 | 08010527 | Cover-duct Assy |
|
- | |||||
| 23 | 5303091197 | Socket - Light |
|
- | |||||
| 24 | 5308037902 | Light Bulb 100w |
|
- | |||||
| 25 | 5308008977 | Mtr Stirrer |
|
- | |||||
| 26 | 5308008976 | Washer-micro Seal |
|
- | |||||
| 27 | 5303091366 | Retainer Vent Tr |
|
- | |||||
| 28 | 3091402 | Trim-vent Top |
|
- | |||||
| 29 | 5303207940 | Cap End-lh Upper Trim |
|
- | |||||
| 29 | 5303207941 | Cap End-rh Upper Trim |
|
- | |||||
| 30 | 5303091212 | Shield - Vent Lh |
|
- | |||||
| 30 | 5303091344 | Shield - Vent Rh |
|
- | |||||
| 31 | 5303091373 | Panel-top Black |
|
- | |||||
| 34 | 3091338 | Cover Light Access |
|
- | |||||
| 35 | 805T023F06-18 | Wrapr Back & Btm |
|
- | |||||
| 36 | 3051264 | Panel-bodyside Rh-almond |
|
- | |||||
| 36 | 3051261 | Panel, Bodyside, Lh (almond) |
|
- | |||||
| 36 | 3051265 | Panel, Bodyside, Rh (wheat) |
|
- | |||||
| 36 | 3131908 | Panel-bodyside Rh-black |
|
- | |||||
| 36 | 3051263 | Panel-bodyside Rh-white |
|
- | |||||
| 36 | 3131907 | Panel Bodyside Lh-black |
|
- | |||||
| 36 | 3051260 | Panel, Bodyside, Lh (white) |
|
- | |||||
| 36 | 3051262 | Panel, Bodyside, Lh (wheat) |
|
- | |||||
| 39 | 08010551 | Plug-disconn Kit Surf Elmnt Red |
|
- | |||||
| 40 | 5303011684 | Probe-roast Cntrl |
|
- | |||||
| 42 | 102T028P01 | Bushing, Wire |
|
- | |||||
| *39072 | 5303207548 | Fastener |
|
- | |||||
| *39072 | 5303016166 | Label-cook Guide |
|
- | |||||
| *39073 | 5308008961 | Fastnr Hinge Mtg (4) |
|
- | |||||
| *39073 | 241T017P195 | Fastnr Purselock |
|
- | |||||
| *39073 | 5308037664 | Plug Bttn-rack Glides (8) |
|
- | |||||
| *39073 | 5308008992 | Fastnr Purselock |
|
- | |||||
| *39073 | 5308037677 | Fastnr Wire Clip |
|
- | |||||
| *39074 | 5308008992 | Fastnr Purselock |
|
- | |||||
| *39074 | 5303207582 | Insulator |
|
- | |||||
| 13A | 5303013270 | Nut-stir Shaft To Fan (non-illustrated) |
|
- | |||||
| 20A | 636T090P05 | Screw-duct (2) |
|
- | |||||
| 29A | 5303207949 | Screw-end Cap 8a X 3/8 (2) (non-illustrated) |
|
- | |||||
| 5A | 5303091100 | Screw-btm Trim Mtg (3) (non-illustrated) |
|
- |
