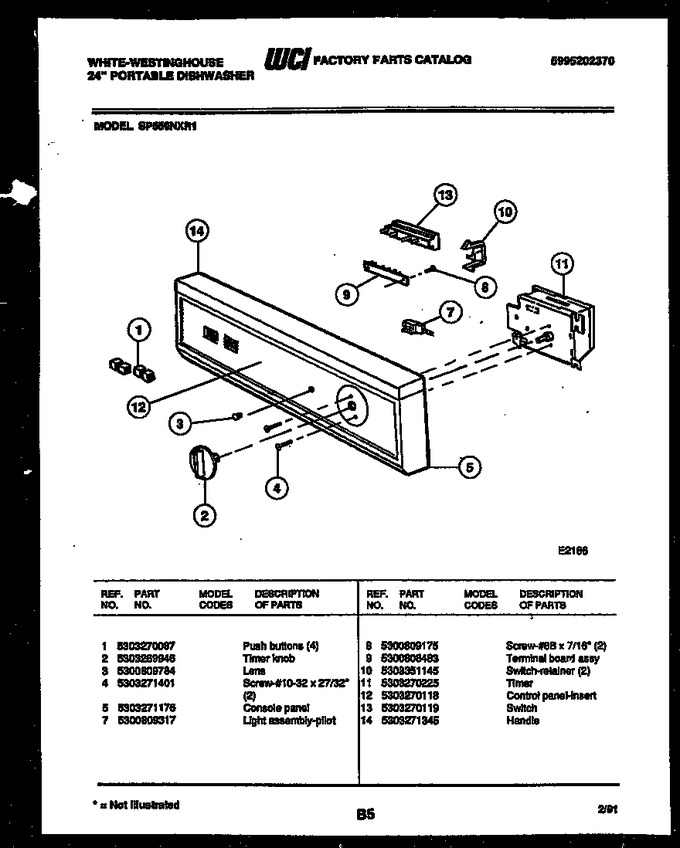

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270087 | Push Buttons (4) |
|
- | |||||
| 2 | 5303269946 | Timer Knob |
|
- | |||||
| 3 | 5300809784 | Lens |
|
- | |||||
| 4 | 5303271401 | Screw-10-32 X 27/32`` (2) |
|
- | |||||
| 5 | 5303271176 | Console Panel |
|
- | |||||
| 7 | 5300809317 | Light Assembly-pilot |
|
- | |||||
| 8 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 9 | 5300808483 | Terminal Board Assy |
|
- | |||||
| 10 | 5303351145 | Switch Retainer (2) |
|
- | |||||
| 11 | 5303270225 | Timer |
|
- | |||||
| 12 | 5303270118 | Control Panel-insert |
|
- | |||||
| 13 | 5303270119 | Switch |
|
- | |||||
| 14 | 5303271345 | Handle |
|
- |
