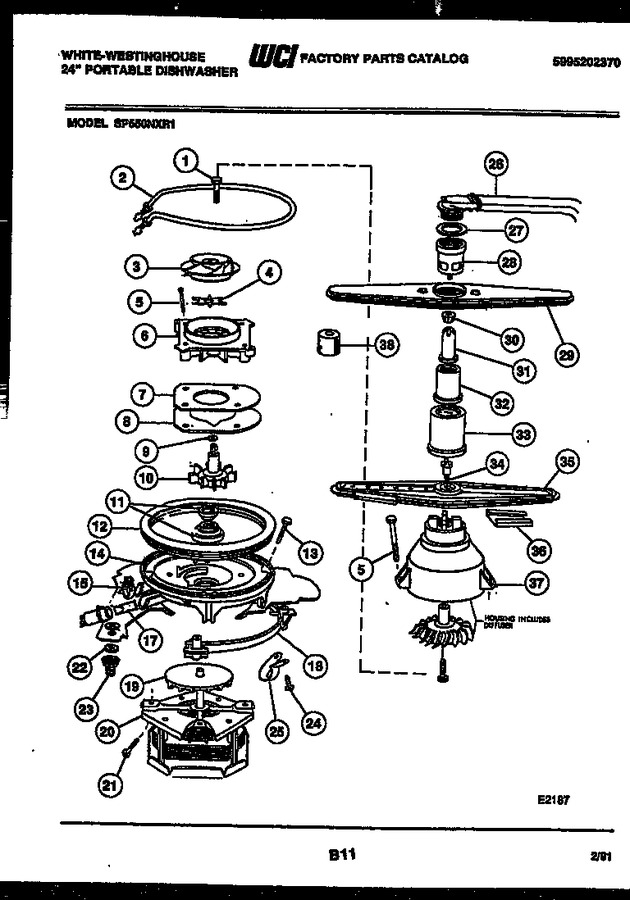

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-10-32 X 2 1/4``				$ 12.06
2	5300809060		Heater-includes 22 & 23		Appelez-nous	-
3	5300809918		Upper Impeller				$ 83.45
4	3100003901		Macerator		Appelez-nous	-
5	5300807359		Screw-10 X 1 3/4`` (4)		Appelez-nous	-
6	5300809921		Spacer Plate				$ 12.39
7	5300807884		Pump Plate				$ 48.51
8	5300807709		Pump Gasket				$ 54.26
9	5300806521		O-ring				$ 32.42
10	5300809910		Pump Impeller Kit-includes 3, 4, 9 & 11		Appelez-nous	-
11	5300803903		Water Seal				$ 109.86
12	5300809008		Gasket				$ 4.99
13	5300807268		Screw 10 X 1 (8)				$ 5.93
14	5300809102		Housing		Appelez-nous	-
15	5300808186		Hose Clamp		Appelez-nous	-
17	5300808174		Connector Hose				$ 19.06
18	5300807712		Clamp Ring (2)		Appelez-nous	-
19	5300809366		Watershield Assy				$ 2.26
20	5300809985		Motor Assy-includes 1, 9, 19		Appelez-nous	-
21	5300809022		Screw-10 X 1`` (2)		Appelez-nous	-
22	5300806833		Heater Grommet (2)				$ 5.34
23	154106202		Heater Nut (2)   (Replaces: 5300806834)			Immediately	$ 18.32
24	5300807270		Screw-8 X 5/8``				$ 6.72
25	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
26	5300808185		Elbow & Tube Assy		Appelez-nous	-
27	5300808184		Gasket		Appelez-nous	-
28	5300808183		Distributor				$ 16.70
29	5300809021		Spray Arm Assy				$ 34.07
30	5300808181		Nut				$ 6.62
31	5300808180		Tower Tip				$ 10.97
32	5300808179		Tower Section				$ 14.02
33	5300808178		Tower Base		Appelez-nous	-
34	5300809018		Spray Arm Bolt		Appelez-nous	-
35	5300809954		Spray Arm Assy				$ 145.95
36	5300809938		Spray Arm Shield				$ 37.05
37	5300809953		Upper Housing Assy-includes Diffuser		Appelez-nous	-
38	5300803923		Seal Installation Tool				$ 57.38
