Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 530809640 Wheel & Bracket Assy-lower Rack (8) Appelez-nous -
2 5303943020 Lower Rack Assy - (contains Rack, 5303270094, And Wheel Appelez-nous -
3 5304509753 Silverware Basket   (Replaces: 5303270096) In-Stock Immediately $ 36.87

5 5303270093 Handle Basket Appelez-nous -
6 5303943032 Upper Rack Assy - (contains Rack, 5303271192, And Wheel Appelez-nous -
9 5300809927 Slide Cap (4) In-Stock Immediately $ 3.69

10 5300809941 Rack Slide (2) Appelez-nous -
11 5300809873 Wheel & Bushing Kit-upper Rack (4) Special Order $ 32.80


    View Diagram in Separate Window     Print Icon   Print Part List

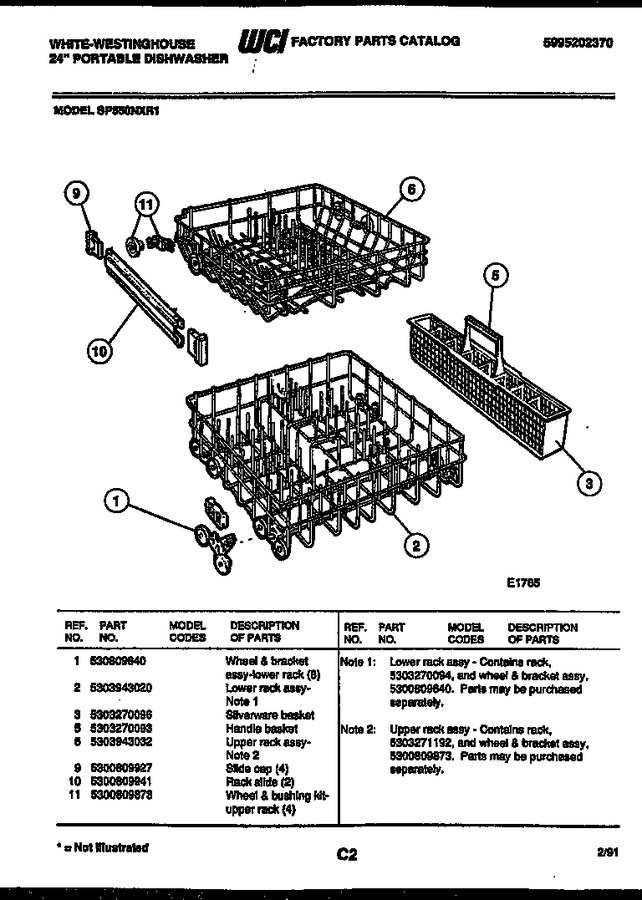

Diagram for SP550NXR1
