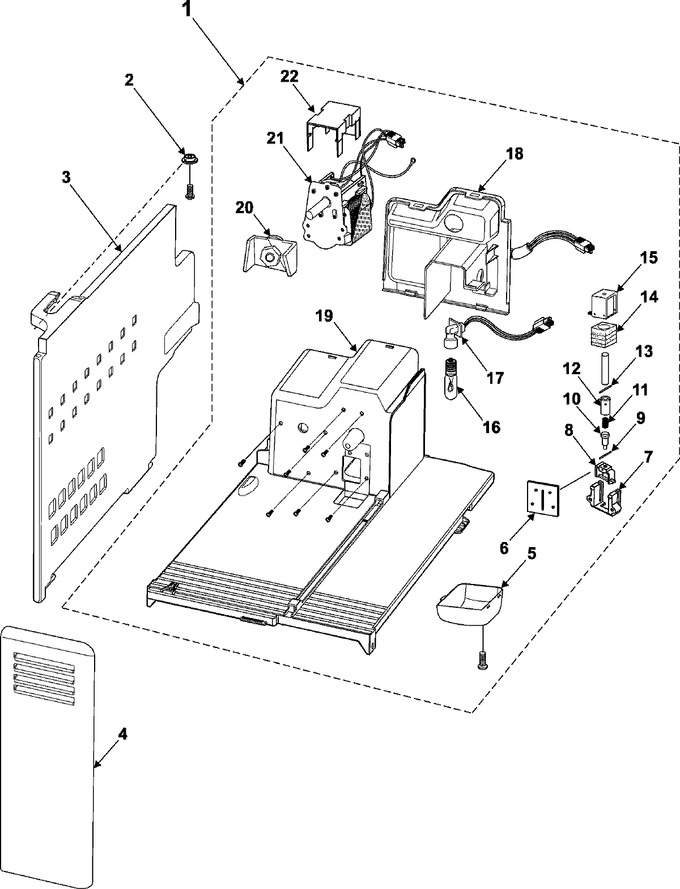

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02057A		Assy Case-motor Auger;ad,-,-,-		Appelez-nous	-
2	DA71-20252A		Fixer-grommet D/fre		Appelez-nous	-
3	DA67-01026A		Partition-cool;ad,hips,t2.0,-,				$ 69.42
4	DA63-02005A		Cover-cool;ad,hips,t2.5,-,-,-,				$ 23.99
5	DA63-00785A		Cover Lamp-fre,disp		Appelez-nous	-
6	DA73-00168A		Rubber-solenoide		Appelez-nous	-
7	DA61-60001A		Slider-solenoid Disp				$ 1.66
8	DA65-20107A		Saddle-solenoid		Appelez-nous	-
9	DA60-90137B		Pin-spring;sts304,-,l16,sr-s71		Appelez-nous	-
10	DA66-90003A		Plnger-solenoid		Appelez-nous	-
11	DA61-20140A		Spring-solenoid				$ 0.85
12	DA63-90008A		Bush-solenoid		Appelez-nous	-
13	DA60-90137A		Pin-spring;sts304,-,l22,sr-s71		Appelez-nous	-
14	DA72-60348A		Seal-foam Pe		Appelez-nous	-
15	DA74-40151G		Valve-solenoid			Immediately	$ 122.54
16	555555		Lamp-incandescent   (Replaces: 4713-001172)				$ 151.94
17	DA47-00112G		Lamp Holder;e17,250v,75w,-,c52		Appelez-nous	-
18	DA63-02006A		Cover-auger Motor;ad,pp,-,-,-,		Appelez-nous	-
19	DA61-01655A		Case-auger Motor				$ 73.91
20	DA61-01659A		Plate-drive Auger				$ 12.60
21	DA31-00105A		Motor Geard-auger				$ 159.59
22	DA63-02012A		Cover-motor Auger		Appelez-nous	-
