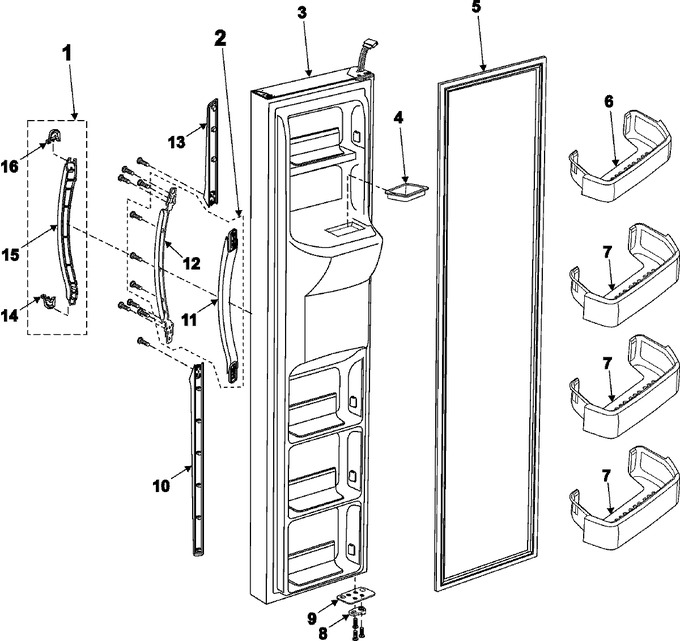

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704B		Assy Handle-front		Appelez-nous	-
2	DA97-00703B		Assy Handle-rear		Appelez-nous	-
3	DA91-01960D		Assy Door Foam Fre;ad(26),stai		Appelez-nous	-
4	DA67-00513B		Cap-chute Ice(85);a-top,cool-w		Appelez-nous	-
5	DA97-01800M		Assy-gasket Door Fre;ad-pjt,-,		Appelez-nous	-
6	DA63-02002A		Guard Fre-upp				$ 19.14
7	DA63-01996A		Guard, Freezer (lwr)		Appelez-nous	-
8	DA66-00268A		Cam-riser;usp-pjt,low Hinge,10				$ 3.23
9	DA61-00430A		Stopper Door				$ 14.72
10	DA64-00417C		Handle-trim Low				$ 35.02
11	DA64-00414C		Handle-mid Rear		Appelez-nous	-
12	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
13	DA64-00418C		Handle-trim Upp		Appelez-nous	-
14	DA64-00415C		Handle-trim Connect,low		Appelez-nous	-
15	DA64-00413C		Handle-mid Front		Appelez-nous	-
16	DA64-00416C		Handle-trim Connect,upp		Appelez-nous	-
