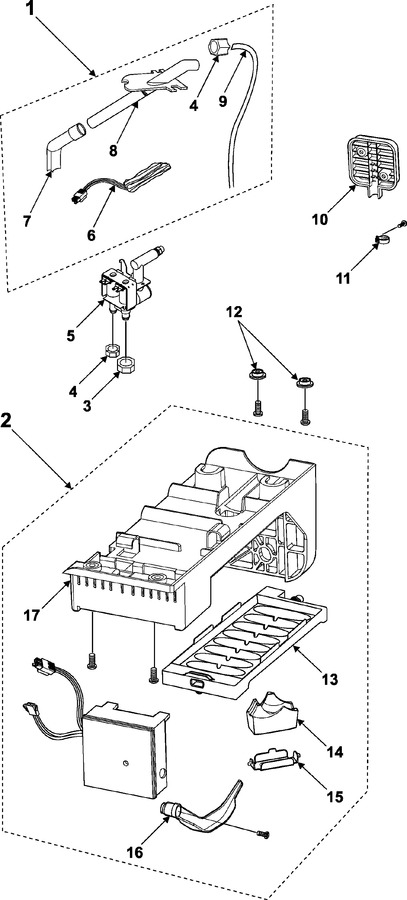

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00708B		Assy Pipe Water				$ 80.32
2	DA97-00258E		Assy Ice Maker				$ 137.56
3	DA60-30105A		Nut-water Line				$ 1.66
4	DA60-30104A		Nut-water Line				$ 2.50
5	DA74-40149D		Valve, Water				$ 86.99
6	DA47-00110C		Heater-water Pipe				$ 28.70
7	DA63-01291A		Grommet-pipe Water Fill,in				$ 14.21
8	DA97-00707A		Assy Pipe-water,sub		Appelez-nous	-
9	DA73-00070K		Pipe-water Line		Appelez-nous	-
10	DA67-00772A		Cap-fixer Water		Appelez-nous	-
11	DA65-20110B		Clamp				$ 6.95
12	DA71-20252A		Fixer-grommet D/fre		Appelez-nous	-
13	DA63-02284B		Tray Ice;ad,pp(bj73slw180),-,-   (Replaces: DA63-02284A)				$ 33.52
14	DA61-01800A		Fixer-sensor;ad,urethane Foam,			Immediately	$ 29.82
15	DA63-02183A		Cover-sensor				$ 3.23
16	555555		Guide Ice-full;ad,abs,-,-,-,nt   (Replaces: DA61-01805A)				$ 151.94
17	DA61-01801A		Support-ice Maker;ad,hips,t2.5		Appelez-nous	-
