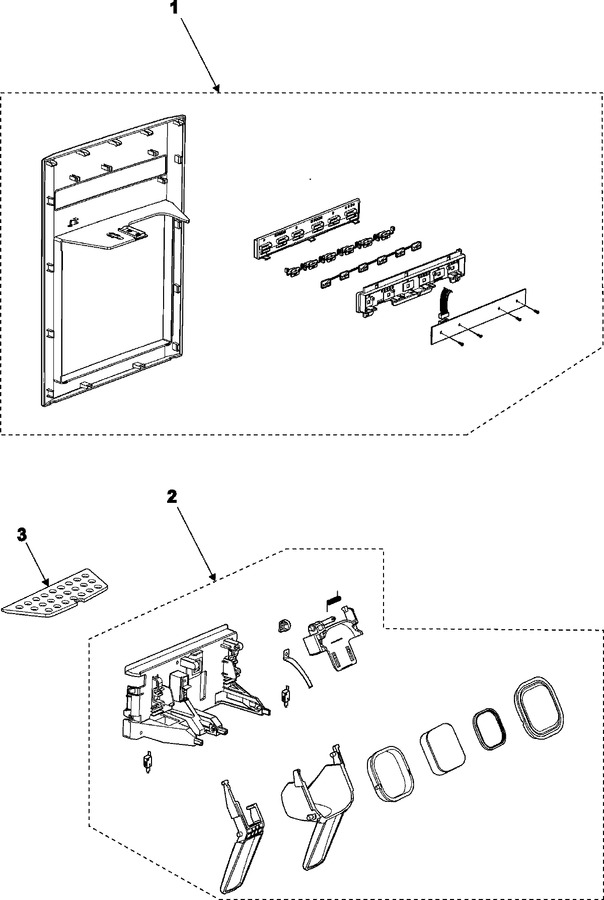

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02046B		Assy Cover-dispenser;ad,abs,-,				$ 160.69
2	DA97-02050A		Assy Cover-pcb Panel Rear;ad,a				$ 108.82
3	DA63-01975B		Tray Dispenser				$ 10.38
