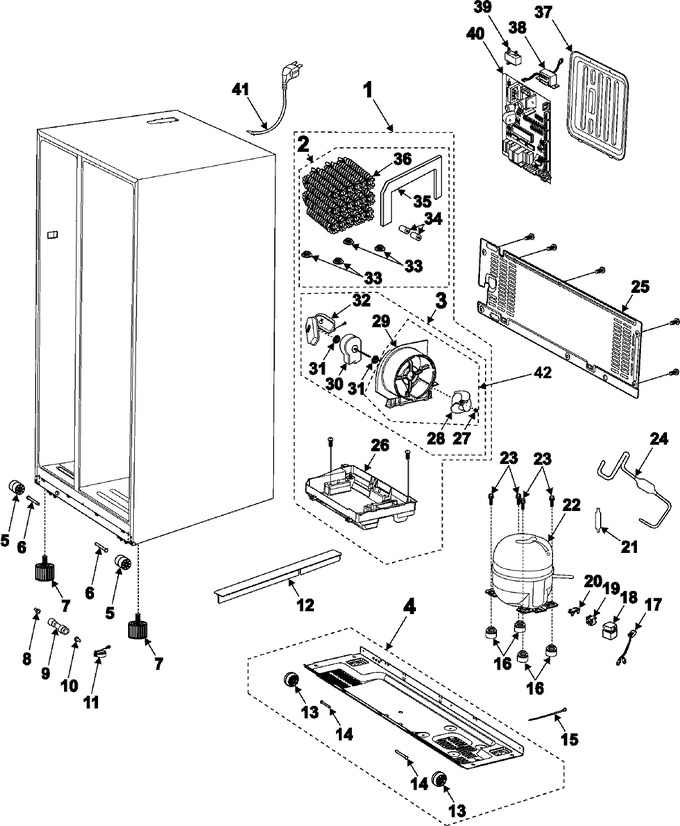

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02018A		Assy Tray-drain Water;ad,7x8,-		Appelez-nous	-
2	555555		Assy Pipe-spiral Cond;ad,spira   (Replaces: DA97-02091A)				$ 151.94
3	DA97-01949A		Assy Support-motor Unit;ad,-,-				$ 136.90
4	Y00000000		See Note Assy Chassis-comp Currently Not Available		Appelez-nous	-
5	DA61-40115A		Caster-front		Appelez-nous	-
6	DA60-90124A		Rivet				$ 1.66
7	DA61-30102A		Foot-front				$ 19.40
8	DA71-20207A		Fixer Water Valve 3				$ 1.66
9	DA62-20111C		Tube-fitting;-,id6.35,-,-,-,-,				$ 16.66
10	DA71-20208A		Fixer-water Valve				$ 3.23
11	DA65-20110B		Clamp				$ 6.95
12	Y00000000		See Note Trim Blade Currently Unavailable		Appelez-nous	-
13	DA61-40126B		Caster-rear				$ 4.75
14	DA60-90146A		Pin-caster;mswr10,od6.0,l40,zp				$ 3.23
15	DA39-20389E		Wire Harness-earth				$ 1.66
16	DA63-02017A		Grommet-comp;queen,epdm,-,-,-,				$ 6.38
17	DA39-00084D		Wire Harness-relay				$ 22.84
19	DA34-10003S		Protector-o/l				$ 41.68
20	DA35-10013Q		Relay				$ 32.29
21	DA73-30102B		Dryer-assy				$ 29.50
22	W10126766		Compressor		Appelez-nous	-
23	DA60-20008A		Bolt-hex		Appelez-nous	-
24	DA97-00918A		Assy Pipe Connect				$ 85.78
25	DA97-01947B		Assy Cover-comp		Appelez-nous	-
26	DA97-02018A		Assy Tray-drain Water;ad,7x8,-		Appelez-nous	-
27	DA61-20128A		Spring-fan				$ 0.85
28	DA31-00015C		Fan-turbo				$ 12.12
29	DA61-01634B		Support-fan Motor Unit;ad,pp,-				$ 25.43
30	DA31-00103A		Motor Fan-ac;-,is27210scd6a,-,				$ 117.59
31	DA63-40119A		Grommet-motor			Immediately	$ 2.50
32	DA63-01283C		Cover-motor;ad,pp(fh21),ntr,-,				$ 8.47
33	DA63-02205A		Cbf Assy		Appelez-nous	-
34	DA63-40171B		Grommet-suct Pipe				$ 4.00
35	DA72-60040D		Seal Cutt-rubber		Appelez-nous	-
36	DA60-90136A		Pin-spiral		Appelez-nous	-
37	Y00000000		See Note Cover Pcb-panel Currently Unavailable		Appelez-nous	-
38	DA26-00022B		Trans Power (115v)				$ 99.00
39	2501-001045		C-oil				$ 70.28
40	555555		Pba Main   (Replaces: DA41-00219H)				$ 151.94
41	555555		Cbf Assy   (Replaces: DA39-10165E)				$ 151.94
42	555555		Assy Support-motor Fre;ad,-,-,   (Replaces: DA97-01948A)				$ 151.94
