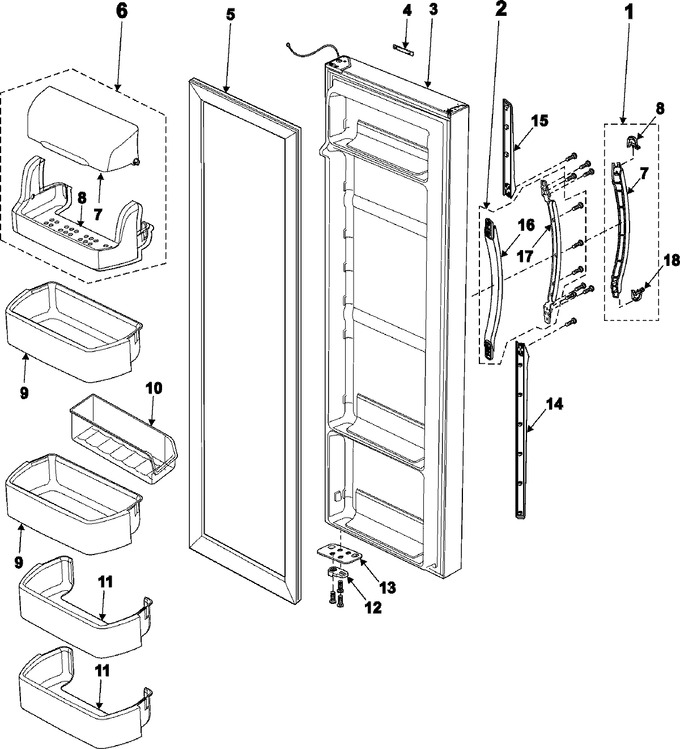

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704Q		Assy-handle Mid Front;rs25,a-t		Appelez-nous	-
2	DA97-00703H		Assy Handle Rear;a-top,assy,-,		Appelez-nous	-
3	DA91-01840B		Assy Door Foam Ref;ad(26),stai		Appelez-nous	-
4	DA64-00990A		Mascot;-,al,-,-,-,-,-,-		Appelez-nous	-
5	DA97-01800N		Assy-gasket Door Ref;ad-pjt,-,				$ 181.70
6	DA97-02041A		Assy Guard-dairy				$ 76.09
7	DA64-00414J		Handle-mid Rear;rs25,abs,-,-,s		Appelez-nous	-
8	DA64-00416D		Handle-trim Connect,upp		Appelez-nous	-
9	DA63-02001A		Guard Ref-mid				$ 53.72
10	DA67-40250E		Tray-utility				$ 56.08
11	DA63-02014A		Guard Ref-low				$ 36.13
12	DA66-00268A		Cam-riser;usp-pjt,low Hinge,10				$ 3.23
13	DA61-00430A		Stopper Door				$ 14.72
14	DA64-00417J		Handle-trim Low;rs25,abs,-,-,u				$ 38.74
15	DA64-00418J		Handle-trim Upp;rs25,abs,-,-,u		Appelez-nous	-
16	DA64-00414J		Handle-mid Rear;rs25,abs,-,-,s		Appelez-nous	-
17	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
18	DA64-00415D		Handle-trim Connect,low		Appelez-nous	-
