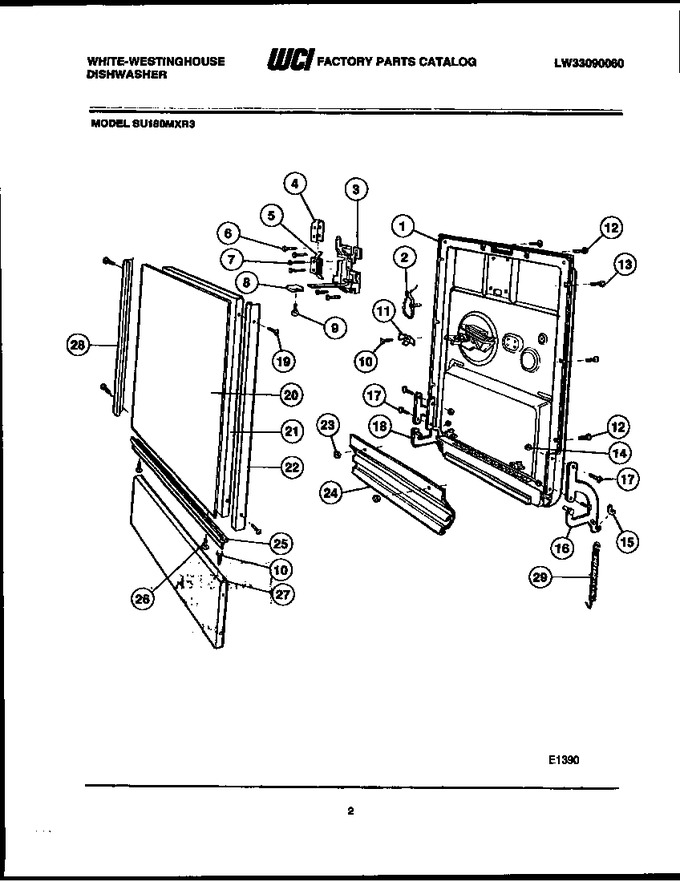

02 - Door Parts
03 - Tub And Frame Parts
04 - Motor Pump Parts
05 - Power Dry And Motor Parts
06 - Console And Control Parts
07 - Cam
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809653 | Door Assy. |
|
- | |||||
| 2 | 5300809075 | Tie - Wire |
|
- | |||||
| 3 | 5300807016 | Latch Assy |
|
- | |||||
| 4 | 5300807450 | Cover - Switch |
|
- | |||||
| 5 | 5300807043 | Switch |
|
- | |||||
| 6 | 5300809029 | Screw |
|
- | |||||
| 7 | 5300808618 | Screw |
|
- | |||||
| 8 | 5300808698 | Knob-latch |
|
- | |||||
| 9 | 5300808715 | Screw |
|
- | |||||
| 10 | 154419403 | Screw (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 11 | 5300808933 | Terminal - Ground |
|
- | |||||
| 12 | 5300809055 | Screw |
|
$ 1.21 | |||||
| 13 | 5300808749 | Screw |
|
- | |||||
| 14 | 5300808470 | Nut |
|
- | |||||
| 15 | 5300805884 | Pad-spring |
|
- | |||||
| 16 | 5300807538 | Arm Assy-rh |
|
- | |||||
| 17 | 5300803311 | Screw |
|
- | |||||
| 18 | 5300807539 | Arm Assy-lh |
|
$ 7.88 | |||||
| 19 | 5300809696 | Screw |
|
- | |||||
| 22 | 5300809912 | Tirm - Door - Rh |
|
- | |||||
| 23 | 83212-5 | Speednut |
|
- | |||||
| 24 | 5300809636 | Baffle-seal |
|
- | |||||
| 25 | 5300809637 | Trim-door Bottom |
|
- | |||||
| 26 | 5300807501 | Screw |
|
- | |||||
| 27 | 5300809550 | Panel - Access - Black |
|
- | |||||
| 28 | 5300809911 | Trim - Door - Lh |
|
- | |||||
| 29 | 5300807601 | Spring-door |
|
$ 74.42 | |||||
| *36457 | 5303208361 | Wood Door Kit (optional) |
|
- |
