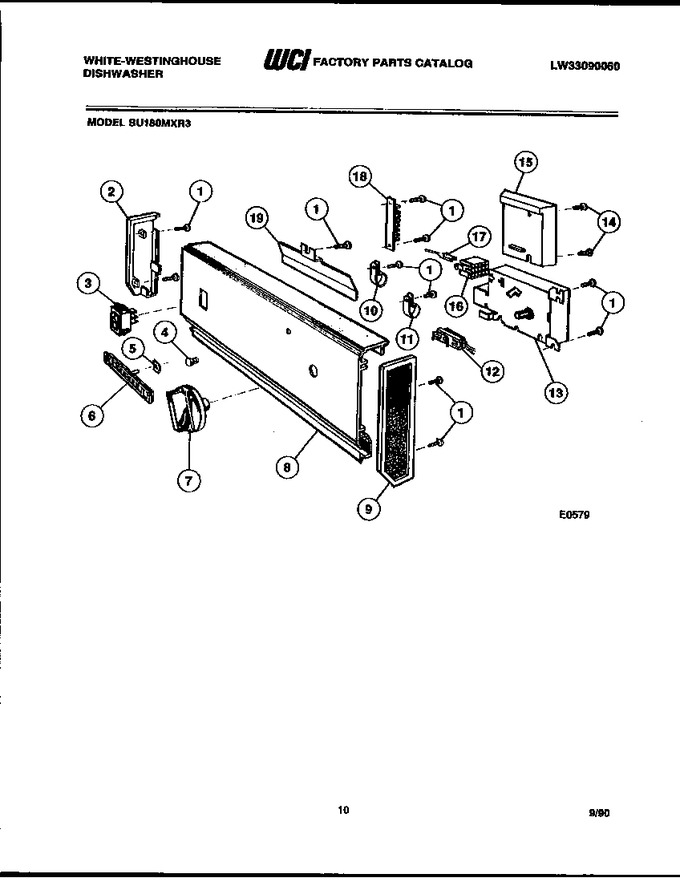

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 2 | 5300808694 | End Cap-lh |
|
- | |||||
| 3 | 5300808854 | Switch - Rocker |
|
- | |||||
| 4 | 5300809740 | Lens |
|
- | |||||
| 5 | 5300808475 | Speednut |
|
- | |||||
| 6 | 5300808477 | Grille - Vent |
|
- | |||||
| 7 | 5300809495 | Knob-timer |
|
$ 80.48 | |||||
| 8 | 5300809652 | Panel - Control |
|
- | |||||
| 9 | 5300808693 | End Cap-rh |
|
- | |||||
| 10 | 5300805584 | Clamp |
|
- | |||||
| 11 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 12 | 5300809317 | Light |
|
- | |||||
| 13 | 5300809759 | Timer |
|
- | |||||
| 14 | 5300806894 | Screw |
|
- | |||||
| 15 | 5300807425 | Pan-splash |
|
- | |||||
| 16 | 5300809883 | Block - 18 Pin |
|
- | |||||
| 17 | 5300809885 | Terminal |
|
- | |||||
| 18 | 5300808483 | Terminal Board |
|
- | |||||
| 19 | 5300808574 | Shield-vent |
|
- |
