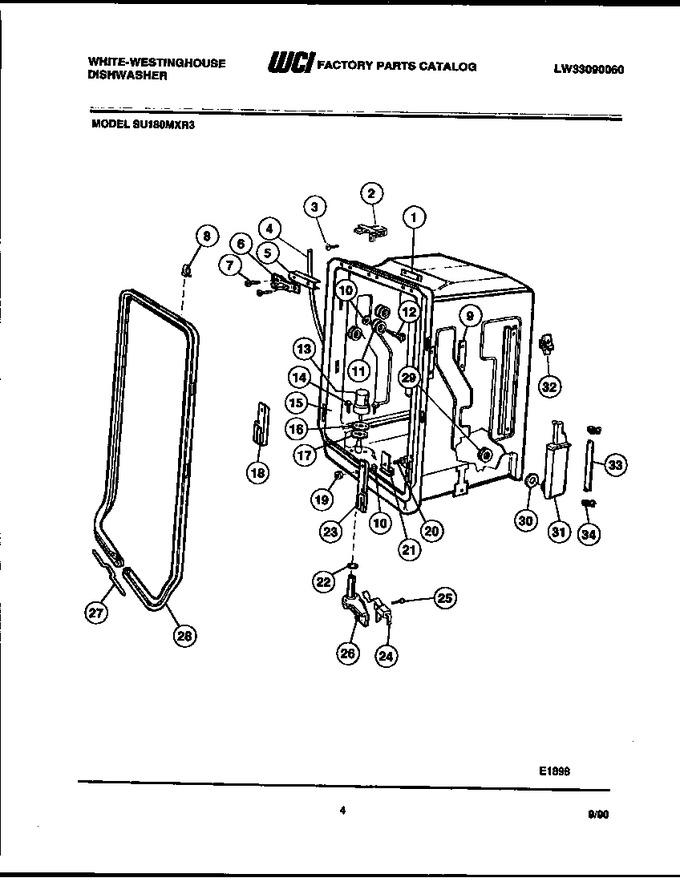

03 - Tub And Frame Parts
04 - Motor Pump Parts
05 - Power Dry And Motor Parts
06 - Console And Control Parts
07 - Cam
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808868 | Plate - Latch |
|
- | |||||
| 2 | 5300808289 | Clip |
|
$ 5.51 | |||||
| 3 | 5300806894 | Screw |
|
- | |||||
| 4 | 5300809112 | Hose - Drain |
|
$ 63.47 | |||||
| 5 | 5300807073 | Shim - Strike |
|
- | |||||
| 6 | 5300807015 | Strike - Door |
|
- | |||||
| 7 | 131302901 | Screw (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 8 | 5300805763 | Tub Gasket Clip Kit (includes 21) |
|
- | |||||
| 9 | 5300807038 | Plate - Tapping |
|
$ 4.94 | |||||
| 10 | 5300809044 | Washer |
|
- | |||||
| 11 | 5304507405 | Roller - Tub (Replaces: 5300809917) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300808564 | Screw And Washer Kit (includes 10) |
|
$ 34.02 | |||||
| 13 | 5300809861 | Float |
|
- | |||||
| 14 | 3014699 | Screw |
|
- | |||||
| 15 | 5300809716 | Tub And Gasket Assy |
|
- | |||||
| 16 | 5300808064 | Plate - Float |
|
- | |||||
| 17 | 5300808063 | Gasket - Float |
|
$ 6.14 | |||||
| 18 | 5300807599 | Arm Guide Lh |
|
- | |||||
| 19 | 83350-2 | Nut |
|
- | |||||
| 20 | 5300803319 | Screw |
|
- | |||||
| 21 | 5300808115 | Clip |
|
- | |||||
| 22 | 5300807759 | O - Ring |
|
$ 4.88 | |||||
| 23 | 5300807600 | Arm Guide-rh |
|
- | |||||
| 24 | 5300809863 | Switch - Float |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw |
|
- | |||||
| 26 | 5300809859 | Float Switch Kit (includes 13, 16, 17, 22, 24, And 25) |
|
- | |||||
| 27 | 5300809634 | Rod |
|
- | |||||
| 28 | 5300809633 | Tub Gasket And Wire Assy (includes 8 And 27) |
|
$ 201.76 | |||||
| 29 | 5300805669 | Nut |
|
- | |||||
| 30 | 5300803573 | Gasket-inlet |
|
- | |||||
| 31 | 5300806470 | Inlet Water |
|
- | |||||
| 32 | 5300806291 | Nut |
|
- | |||||
| 33 | 5300807891 | Tubing - Inlet (includes 34) |
|
- | |||||
| 34 | 5300807813 | Clamp |
|
- | |||||
| *36462 | 5304469950 | Tub Touch-up Kit-optional (Replaces: 5300807509) |
|
Immediately | $ 89.95 | ||||
| *36462 | 154641601 | Tub Insulation (Replaces: 5303208369) |
|
$ 6.15 |
