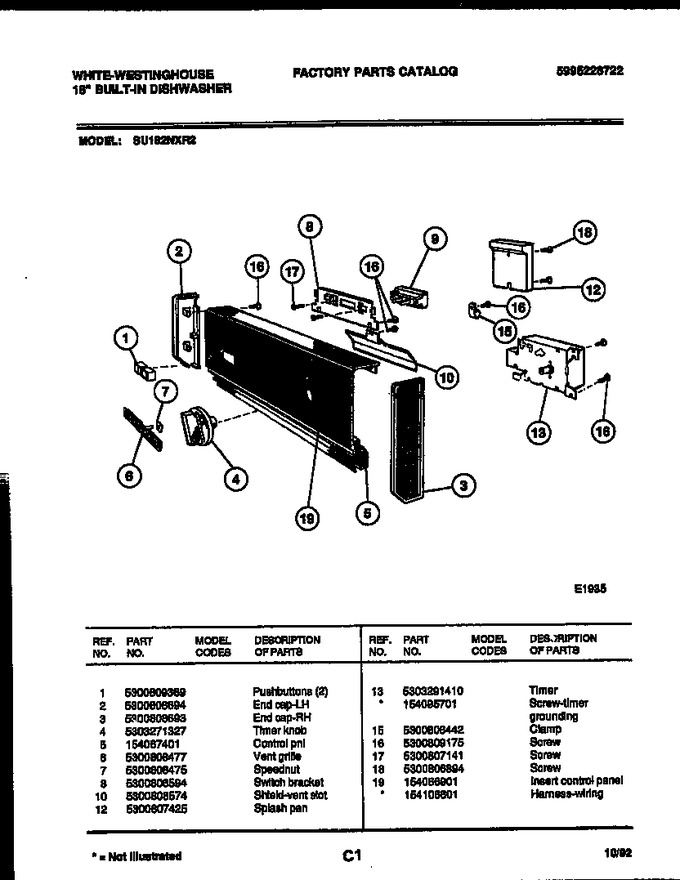

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809369		Push Buttons (2)		Appelez-nous	-
2	5300808694		End Cap-lh		Appelez-nous	-
3	5300808693		End Cap-rh		Appelez-nous	-
4	5303271327		Timer Knob		Appelez-nous	-
5	154067401		Control Pnl		Appelez-nous	-
6	5300808477		Vent Grille		Appelez-nous	-
7	5300808475		Speednut		Appelez-nous	-
8	5300806594		Switch Bracket		Appelez-nous	-
10	5300808574		Shield-vent Slot		Appelez-nous	-
12	5300807425		Splash Pan		Appelez-nous	-
13	5303291410		Timer				$ 237.56
15	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
16	5300809175		Screw 8b X 7/16``		Appelez-nous	-
17	5300807141		Screw		Appelez-nous	-
18	5300806894		Screw		Appelez-nous	-
19	154066901		Insert Control Panel		Appelez-nous	-
*68279	154106601		Harness-wiring		Appelez-nous	-
13A	154095701		Screw-timer Grounding (non-illustrated)				$ 10.34
